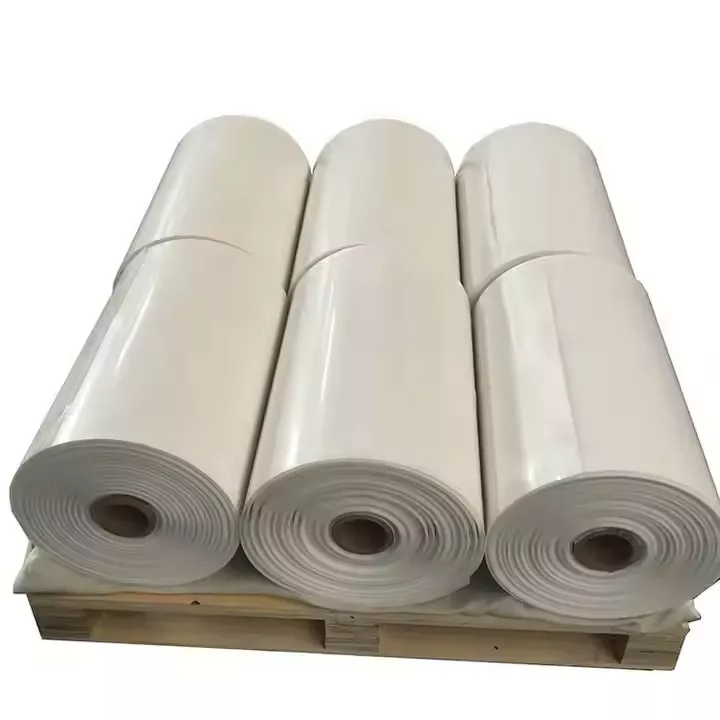

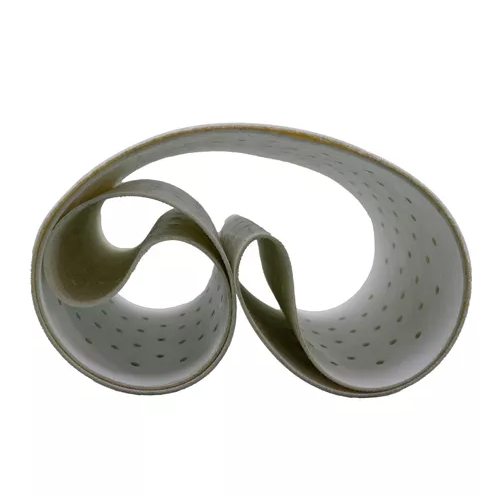

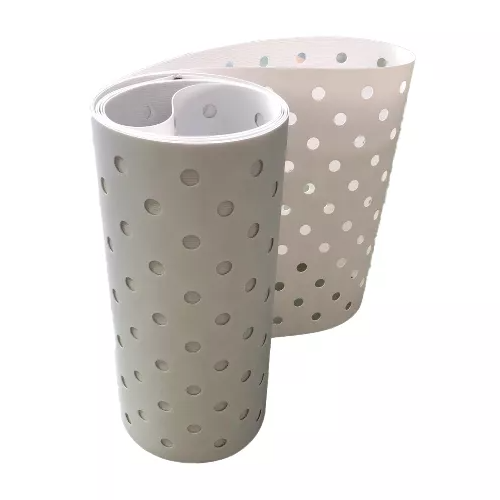

Silicone conveyor belt is a conveyor belt made from silicone rubber or has a silicone-coated surface. Silicone belt is featured with food grade certified and high temperature resistance, so it can be used for food processing industry where heat is required. Silicone coated conveyor belt surface is non-sticky, it is suitable for conveying some products like diaper, napin in hygiene workshop.
Silicone Conveyor Belt is a conveyor belt made from silicone rubber or has a silicone-coated surface. Silicone belt is featured with food grade certified and high temperature resistance, so it can be used for food processing industry where heat is required. Silicone coated conveyor belt surface is non-sticky, it is suitable for conveying some products like diaper, napkin in hygiene workshop.
Features:
Heat Resistance
Non-Stick Surface: The non-stick surface of silicone belt ensures easy release of products, improving hygiene standard.
Chemical Resistance
Food Safety: Silicone is non-toxic and meets FDA regulations for food-grade materials
Application:
Food Industry: Transporting baked goods through ovens thanks for their heat resistance, handling sticky products like dough or candies.
Packaging Industry: Ensure smooth operation on heat sealing machines.
Chemical Industry: Transporting corrosive materials due to its chemical resistance.
Physical Properties | |
Type | Silicone Conveyor Belt |
Color | White |
Total thickness | 1.5mm |
Layers | 2 ply |
Surface Material | White silicone |
Bottom Material | Fabric |
Hardness | 80 Shore A |
Feature | Non-stick |
Working Load at Width 1% | 8N/MM |
Minimum Turning Wheel Diameter | Forward: 30mm Reverse: 40mm |
Working Temperature | -15℃ – 120 ℃ |
Friction Coefficient | 0.3 |
Application | Food industry, sanitary industry |
Silicone Conveyor Belt is a conveyor belt made from silicone rubber or has a silicone-coated surface. Silicone belt is featured with food grade certified and high temperature resistance, so it can be used for food processing industry where heat is required. Silicone coated conveyor belt surface is non-sticky, it is suitable for conveying some products like diaper, napkin in hygiene workshop.
Features:
Heat Resistance
Non-Stick Surface: The non-stick surface of silicone belt ensures easy release of products, improving hygiene standard.
Chemical Resistance
Food Safety: Silicone is non-toxic and meets FDA regulations for food-grade materials
Application:
Food Industry: Transporting baked goods through ovens thanks for their heat resistance, handling sticky products like dough or candies.
Packaging Industry: Ensure smooth operation on heat sealing machines.
Chemical Industry: Transporting corrosive materials due to its chemical resistance.
Physical Properties | |
Type | Silicone Conveyor Belt |
Color | White |
Total thickness | 1.5mm |
Layers | 2 ply |
Surface Material | White silicone |
Bottom Material | Fabric |
Hardness | 80 Shore A |
Feature | Non-stick |
Working Load at Width 1% | 8N/MM |
Minimum Turning Wheel Diameter | Forward: 30mm Reverse: 40mm |
Working Temperature | -15℃ – 120 ℃ |
Friction Coefficient | 0.3 |
Application | Food industry, sanitary industry |
