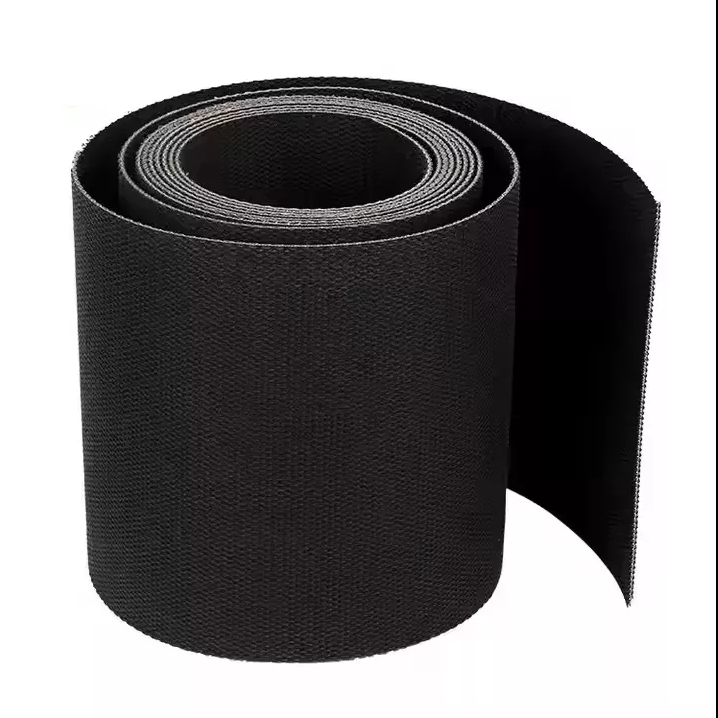

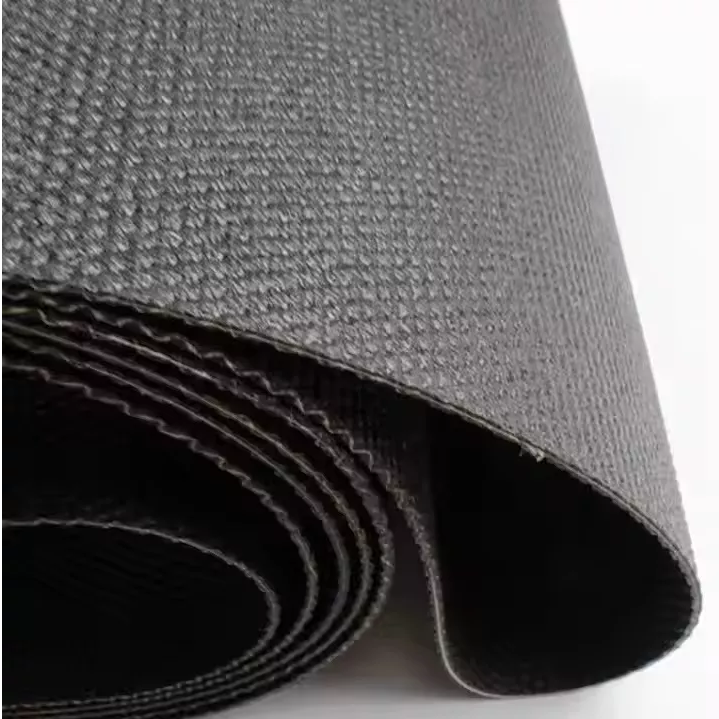

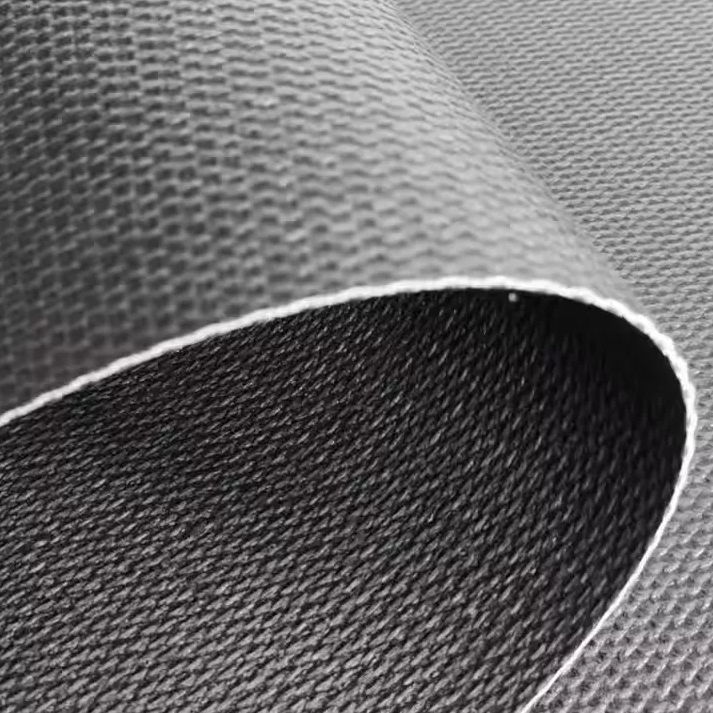

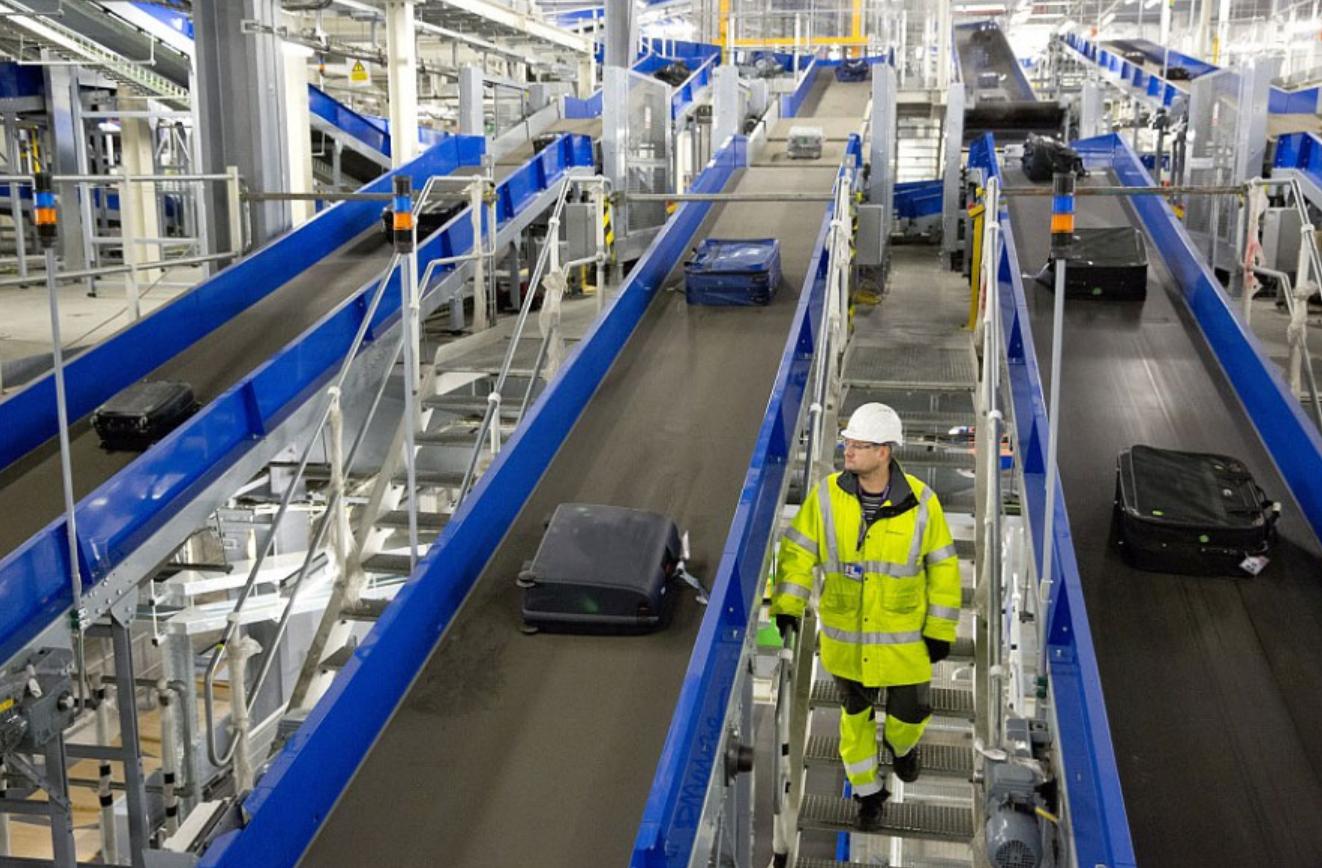

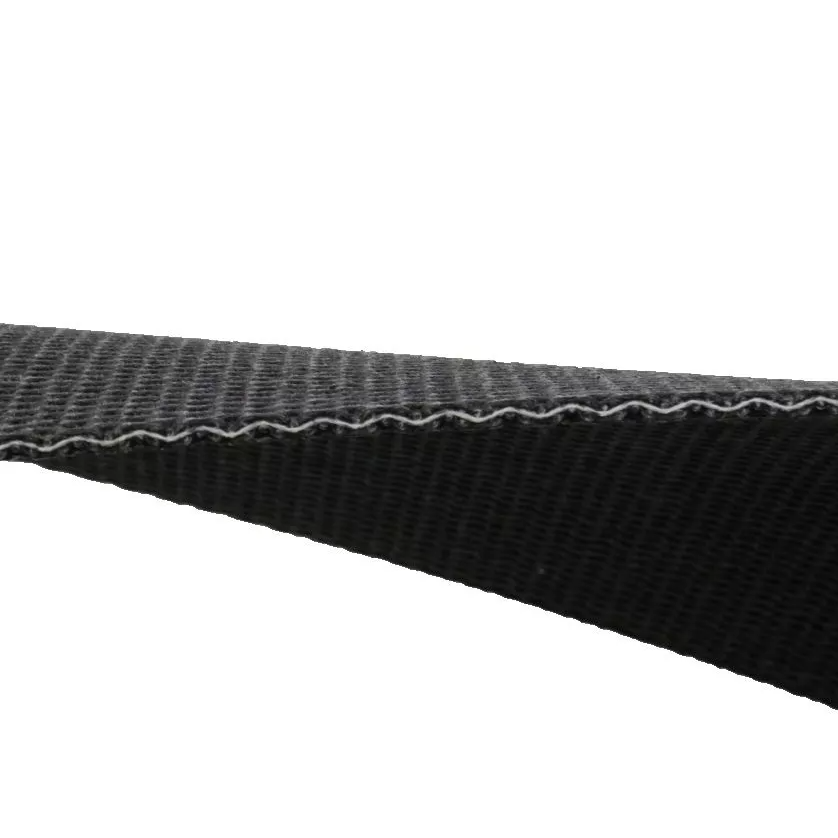

PVK conveyor belts have solid woven core fabric and with PVK coating on the surface,compare with PVC conveyor belts, PVK belts have higher wear resistance and cutting resistance, which are widely used in the logistics industry, sorting system, airport, express delivery etc.
PVK conveyor belts have solid woven core fabric and with PVK coating on the surface,compare with PVC conveyor belts, PVK belts have higher wear resistance and cutting resistance, which are widely used in the logistics industry, sorting system, airport, express delivery etc.
Features:
1. PVK pulp on the surface of the core integral braided belt
2. The size and length range can be specially processed according to customer needs.
3. The interface adopts clamp lap method.
4. The cored weaving process is non-layered, wear-resistant and non-slip, and the service life is 3-4 times longer than ordinary conveyor belts.
5. Efficient and durable, quiet, the first choice for logistics sorting.
Physical Properties | |
Type | PVK Conveyor Belt |
Total thickness | 2-6mm |
Weight | 3.3-6 Kg/m² |
Color | Black |
1% elongation Strength | 15-23N/mm |
Tensile Strength | 210-300N/mm |
Working temperature | -20 ~ +80 |
Minimum Pulley Dia | 100-120mm |
Max Production Width | 3000mm |
PVK conveyor belts have solid woven core fabric and with PVK coating on the surface,compare with PVC conveyor belts, PVK belts have higher wear resistance and cutting resistance, which are widely used in the logistics industry, sorting system, airport, express delivery etc.
Features:
1. PVK pulp on the surface of the core integral braided belt
2. The size and length range can be specially processed according to customer needs.
3. The interface adopts clamp lap method.
4. The cored weaving process is non-layered, wear-resistant and non-slip, and the service life is 3-4 times longer than ordinary conveyor belts.
5. Efficient and durable, quiet, the first choice for logistics sorting.
Physical Properties | |
Type | PVK Conveyor Belt |
Total thickness | 2-6mm |
Weight | 3.3-6 Kg/m² |
Color | Black |
1% elongation Strength | 15-23N/mm |
Tensile Strength | 210-300N/mm |
Working temperature | -20 ~ +80 |
Minimum Pulley Dia | 100-120mm |
Max Production Width | 3000mm |
