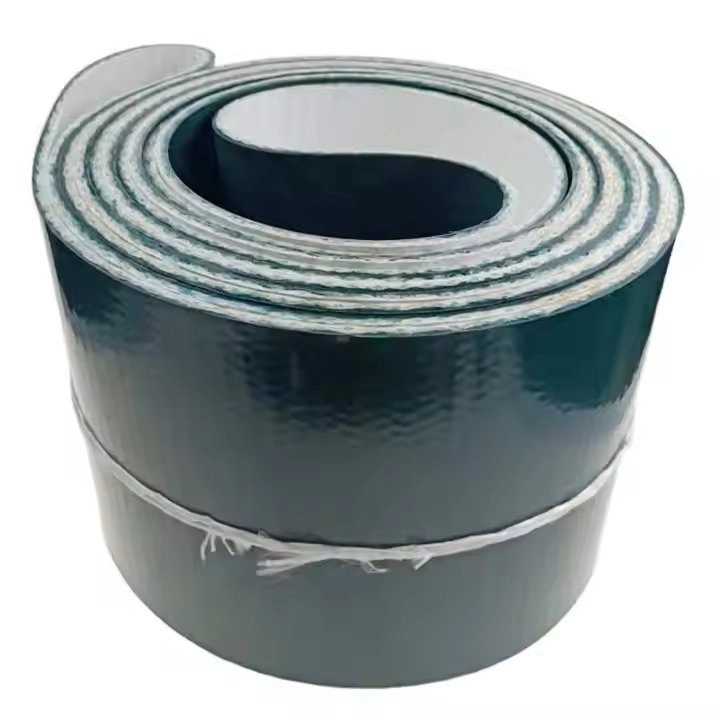

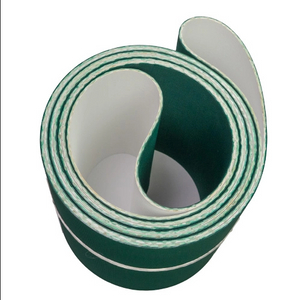

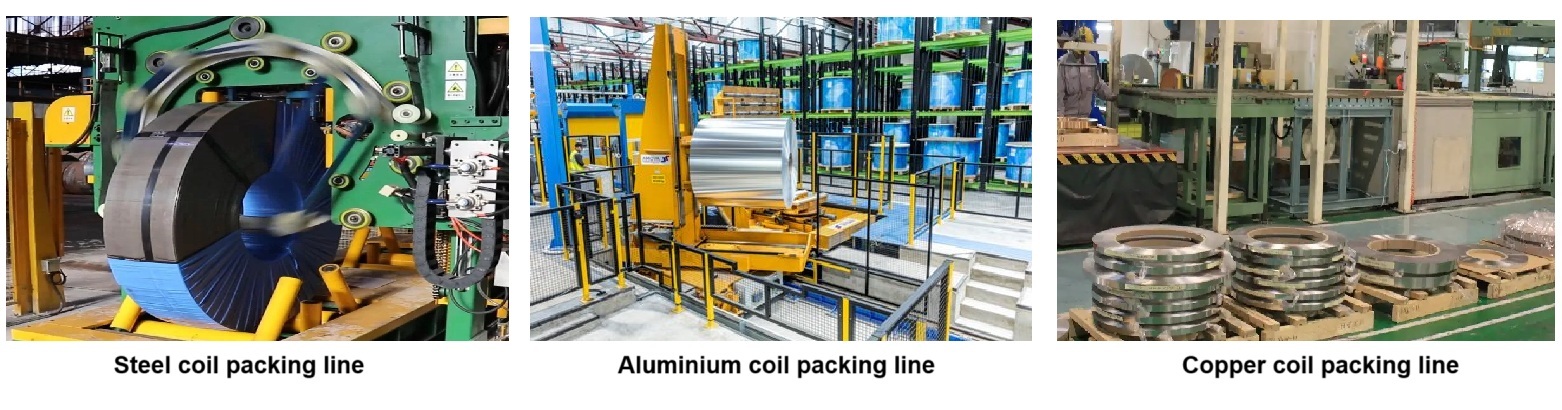

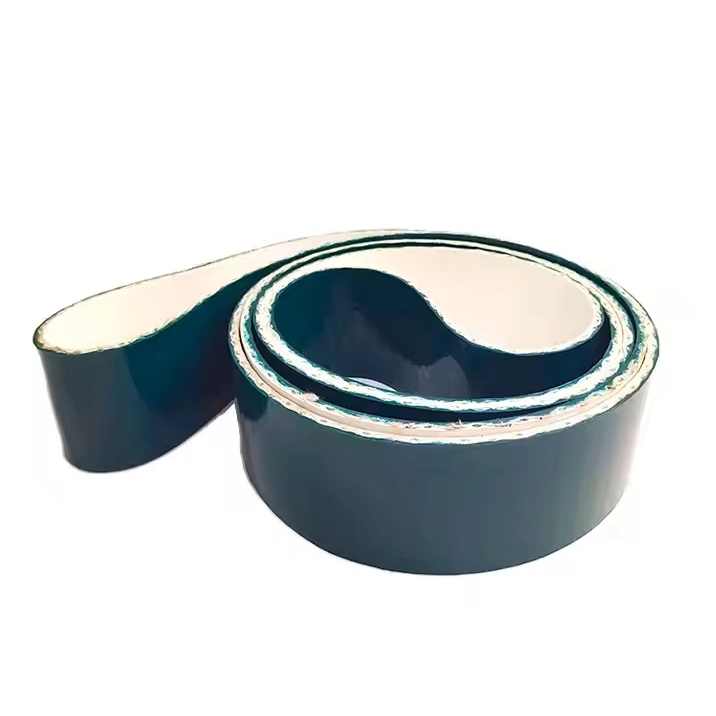

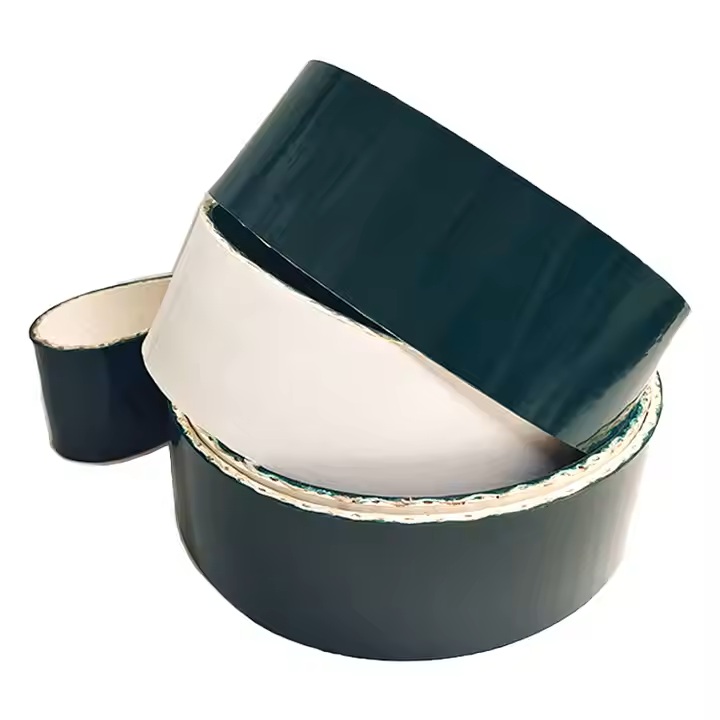

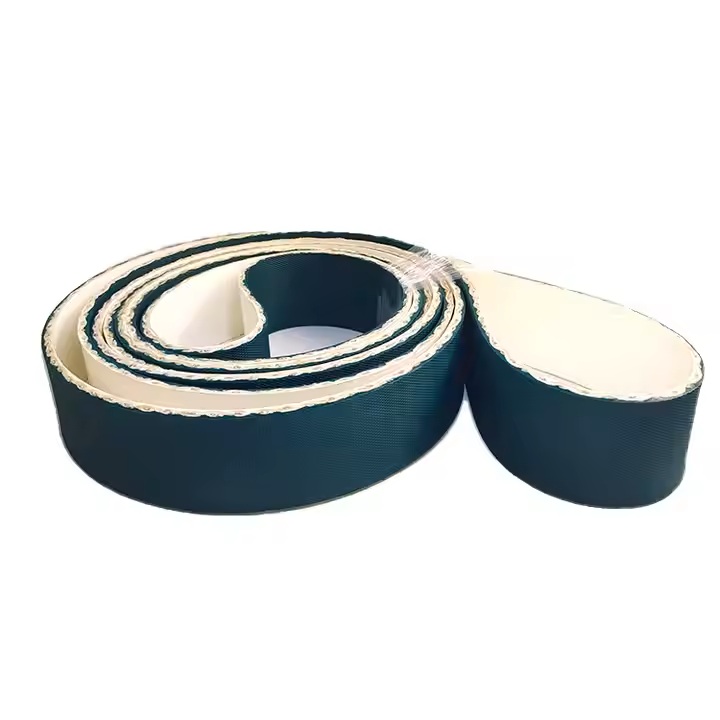

Seamless PU coil wrapper belt, also called belt wrapper belt, is a type of special belt designed for wrapping coils of metal material, mainly used in industries like steel manufacturing, aluminium sheet processing, or copper production. It exhibits superior tensile strength and excellent abrasion, chemical and oil resistance suitable for harsh environmental conditions.
Seamless PU coil wrapper belt, also called belt wrapper belt, is a type of special belt designed for wrapping coils of metal material, mainly used in industries like steel manufacturing, aluminium sheet processing, or copper production. It exhibits superior tensile strength and excellent abrasion, chemical and oil resistance suitable for harsh environmental conditions.

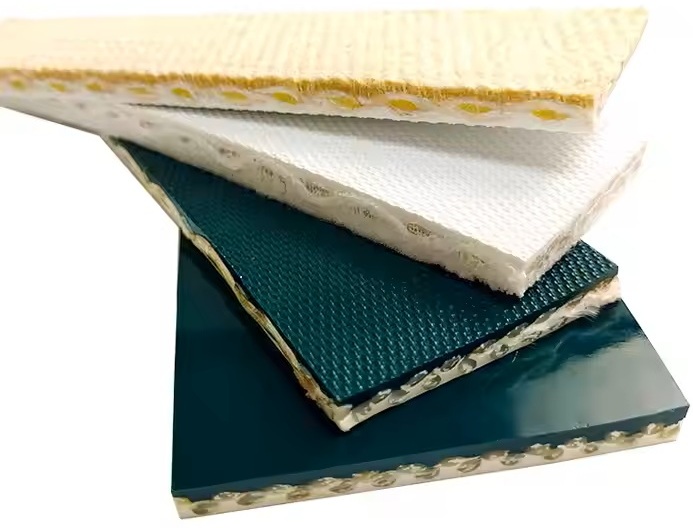

Coil wrapper belt is available in various widths, lengths, and thickness , and also customized with special profiles to accommodate unique requirements of different applications.

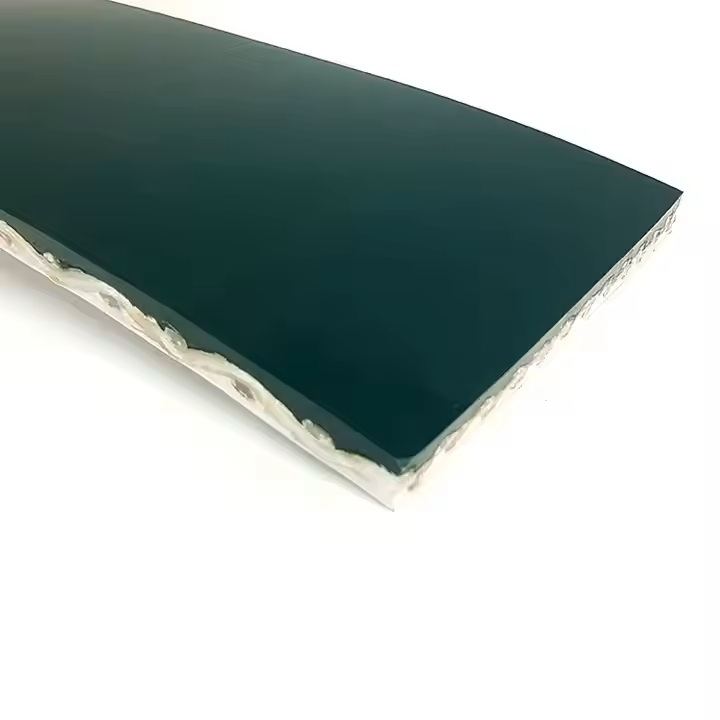

Our coil wrapper belt apply cut resistant TPU, which is oil resistant and cut resistant. The whole belt is seamless type, so it has very high strength.
★ Reduced Splice Failure Risk: The coating PU and fabric all are truly endless structure.
★ Oil and Ozone Resistant: The belt surface and bottom all coating with top-quality TPU material.
★ Superior Cutting Resistance

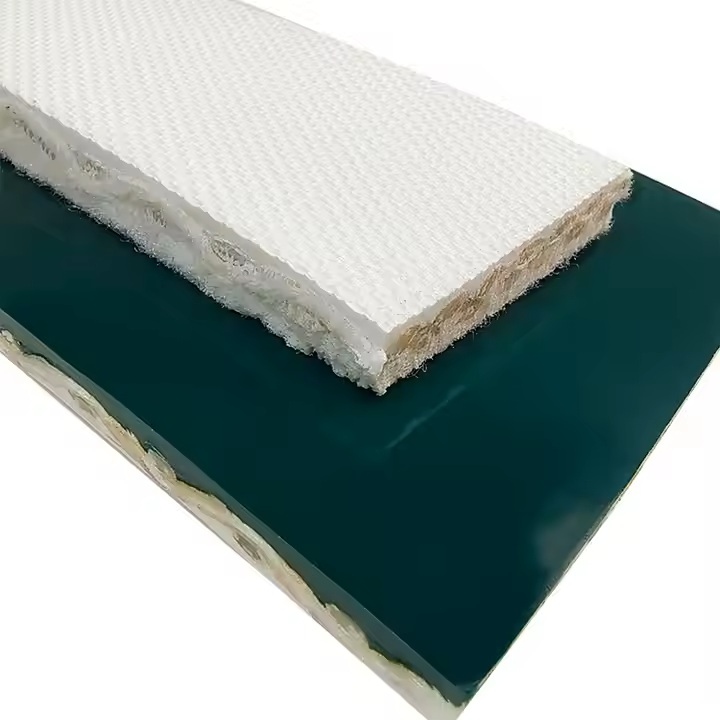

★ High-strength Tensile: The belt adopts high-strength solid woven fiber.
Physical Properties | |
Material | Surface: TPU, Glossy |
Bottom: TPU, Glossy | |
Color | Surface: Dark green |
Bottom: White | |
Tension Material | Solid woven fiber |
Thickness | 4~10MM ±0.5MM |
Hardness | Surface: 92 shore A |
Bottom: 85 shore A | |
Force Elongation | 70N/MM at 1% |
130N/MM at 2% | |
Ultimate Tensile Strength | 660N/MM |
Friction Coefficient | Surface with steel/aluminium: 0.82/0.67 |
Bottom with steel/aluminium: 0.66/0.48 | |
Maximum Speed | 380 m / min |
Peeling Strength | TPU and fabric layer 10N/MM |
Working Temperature | -20 ℃ -110 ℃ |
Minimum Pulley Diameter | Forward: 85mm |
Reversal: 110mm | |
