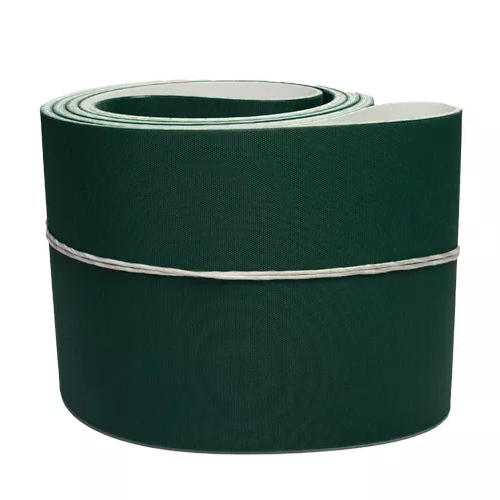

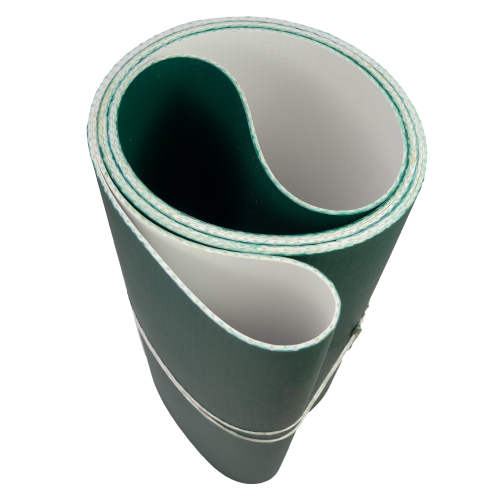

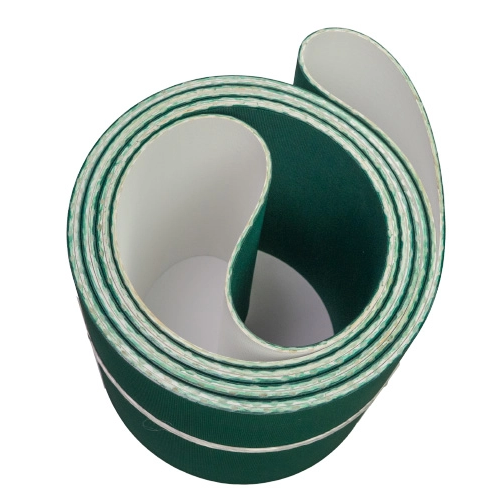

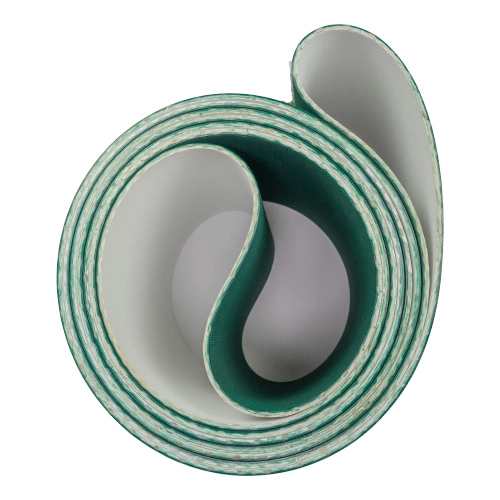

Coil wrapper belt is produced with wear resistant TPU and solid woven polyester fiber, primarily utilized in metal industries to bundle flat metal sheets (such as steel aluminum, and copper) of various thickness into coils on belt wrapper machine.
Coil wrapper belt is produced with wear resistant TPU and solid woven polyester fiber, primarily utilized in metal industries to bundle flat metal sheets (such as steel aluminum, and copper) of various thickness into coils on belt wrapper machine.
Coil wrapper belt is available in various widths, lengths, and thickness , and also customized with special profiles to accommodate unique requirements of different applications.Our coil wrapper belt apply cut resistant TPU, which is oil resistant and cut resistant.
★ Heavy-duty Application
★ Long Life Service
★ Kerosene Oil and Fats Resistance
★ Low Fraying Risk Due to Perfect Sealed Edge
Physical Properties | |
Material | Surface: TPU, Glossy |
Bottom: TPU, Glossy | |
Color | Surface: Dark green |
Bottom: White | |
Tension Material | Solid woven fiber |
Thickness | 4~10MM ±0.5MM |
Hardness | Surface: 92 shore A |
Bottom: 85 shore A | |
Force Elongation | 70N/MM at 1% |
130N/MM at 2% | |
Ultimate Tensile Strength | 660N/MM |
Friction Coefficient | Surface with steel/aluminium: 0.82/0.67 |
Bottom with steel/aluminium: 0.66/0.48 | |
Maximum Speed | 380 m / min |
Peeling Strength | TPU and fabric layer 10N/MM |
Working Temperature | -20 ℃ -110 ℃ |
Minimum Pulley Diameter | Forward: 85mm |
Reversal: 110mm | |
