Hot Stock and Water Belting is primarily used in the rubber and plastic industry to convey "Hot Stock."
This belt is also popular in the airline industry.
Top cover up the belt offers a clean surface for conveying or accumulating.
Hot Stock and Water Belting is primarily used in the rubber and plastic industry to convey "Hot Stock."
This belt is also popular in the airline industry.
Top cover up the belt offers a clean surface for conveying or accumulating.

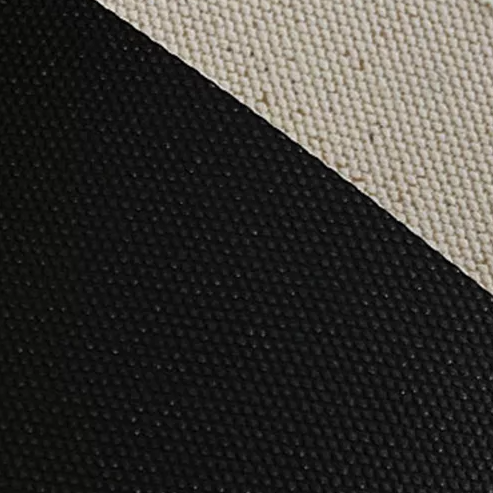

Top surface is coated with SBR Rubber, bottom surface is Bare duck.
Coatings available in different colors and thicknesses.
Bare duck surface down for lowest possible friction for slider bed use, and up for deflector bar applications; ideal as slip-top belt for “stall” operations.
Application:
• Tire manufacturing
• Conveys rubber stock in various stages of processing
• Horizontal conveying systems where a bare fabric surface is preferred
Physical Properties | |
Belt Compound | Rubber |
Fabric | Cotton, Polyester |
Top Surface | Smooth |
Bottom Surface | Bare |
Color | White |
Number of Plies | 2P to 10P |
Thickness | 2.0mm to 10mm |
Anti-Static | No |
Max. Width | 2200mm |
Min. Pulley Diameter | 70mm |
Operating Temperature | -40° to 120° C |
Fabric | Cotton, Polyester |
Meets FDA Requirements | No |
Adhesion between plies | 3.0N/mm |
Joint | Steel buckle joint, Seamless connection |
Hot Stock and Water Belting is primarily used in the rubber and plastic industry to convey "Hot Stock."
This belt is also popular in the airline industry.
Top cover up the belt offers a clean surface for conveying or accumulating.
Top surface is coated with SBR Rubber, bottom surface is Bare duck.
Coatings available in different colors and thicknesses.
Bare duck surface down for lowest possible friction for slider bed use, and up for deflector bar applications; ideal as slip-top belt for “stall” operations.
Application:
• Tire manufacturing
• Conveys rubber stock in various stages of processing
• Horizontal conveying systems where a bare fabric surface is preferred
Physical Properties | |
Belt Compound | Rubber |
Fabric | Cotton, Polyester |
Top Surface | Smooth |
Bottom Surface | Bare |
Color | White |
Number of Plies | 2P to 10P |
Thickness | 2.0mm to 10mm |
Anti-Static | No |
Max. Width | 2200mm |
Min. Pulley Diameter | 70mm |
Operating Temperature | -40° to 120° C |
Fabric | Cotton, Polyester |
Meets FDA Requirements | No |
Adhesion between plies | 3.0N/mm |
Joint | Steel buckle joint, Seamless connection |
