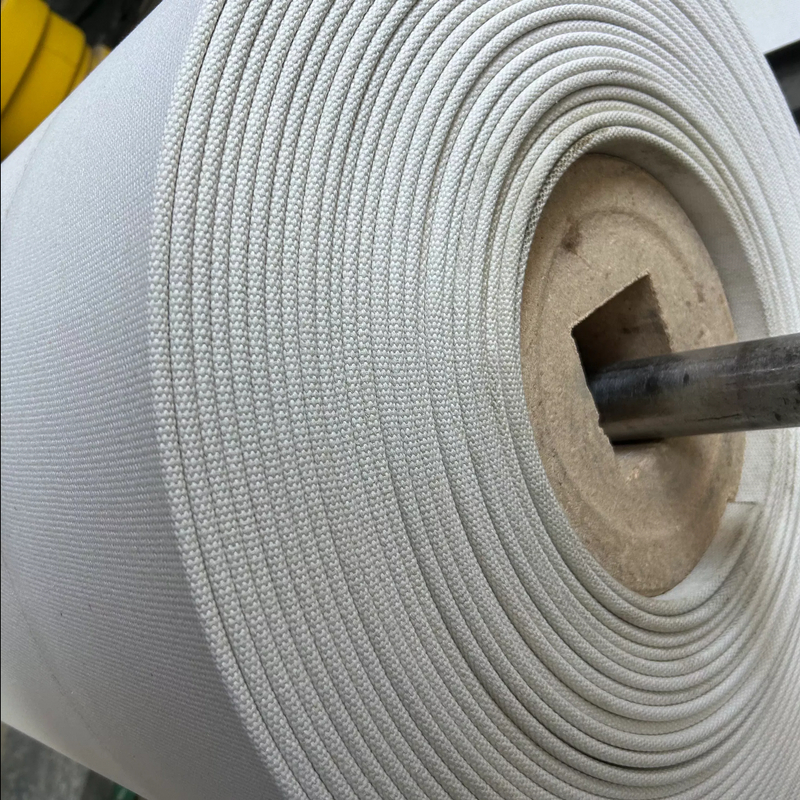

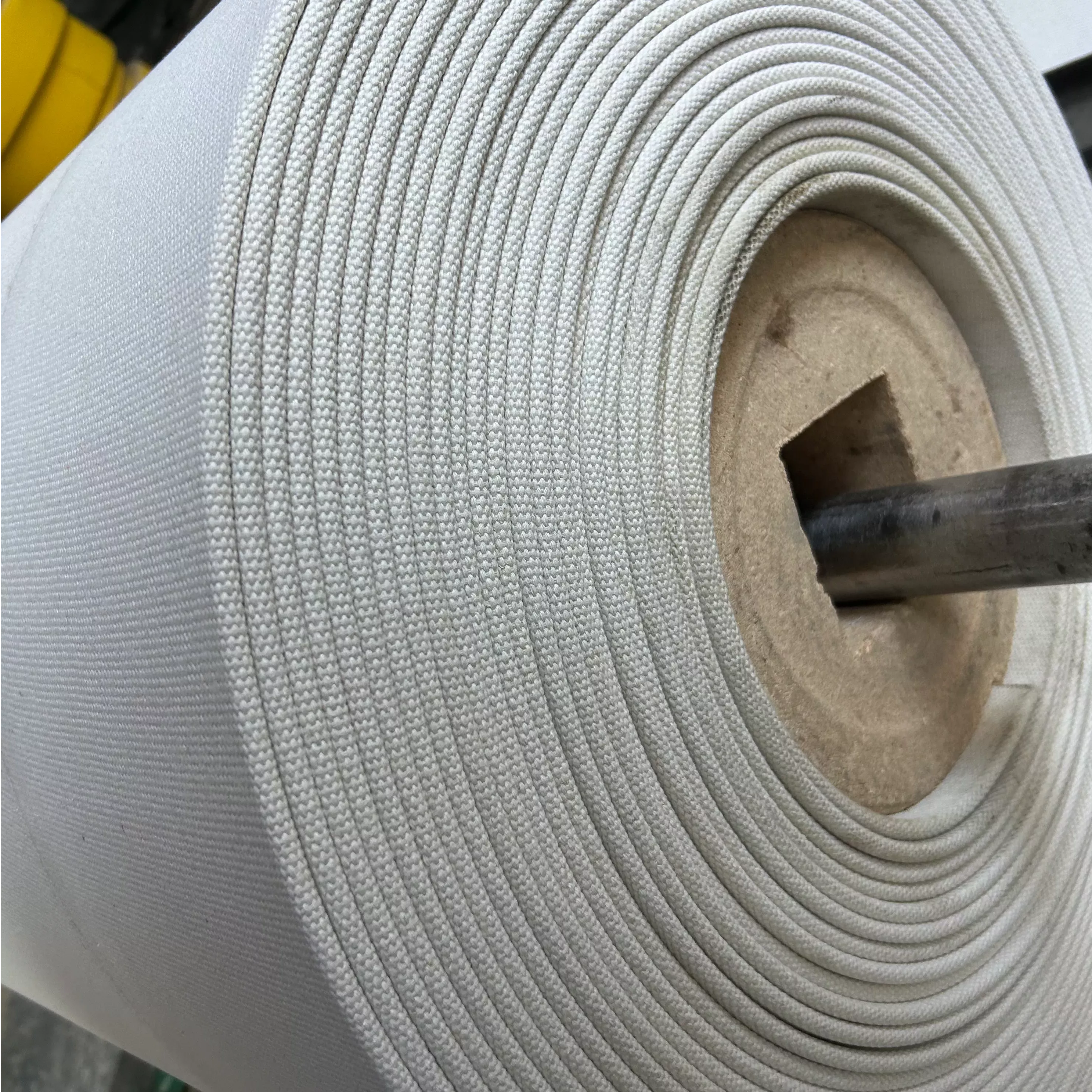

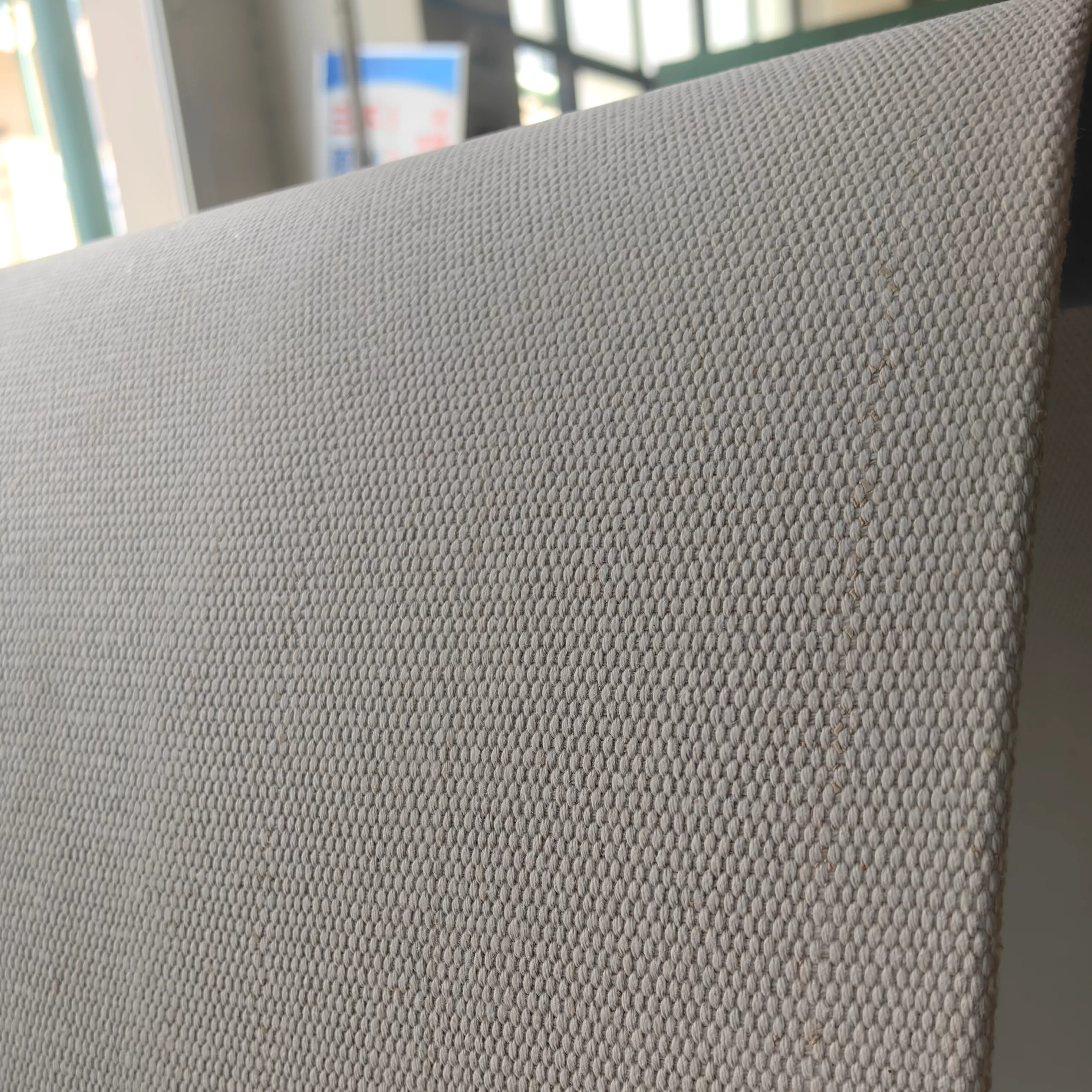

Cotton Canvas Belt, Top and bottom surface are Bare duck.
It is mainly used for conveying uncured rubber in tire plants.
Coatings available in different colors and thicknesses.
Bare duck surface down for lowest possible friction for slider bed use, and up for deflector bar applications; ideal as slip-top belt for “stall” operations.
Cotton Belt, Top surface and bottom surface are Bare duck.
It is mainly used for conveying uncured rubber in tire plants.
Coatings available in different colors and thicknesses.
Bare duck surface down for lowest possible friction for slider bed use, and up for deflector bar applications; ideal as slip-top belt for “stall” operations.
Application:
• Tire manufacturing
• Conveys rubber stock in various stages of processing
• Horizontal conveying systems where a bare fabric surface is preferred
Physical Properties | |
Belt Compound | Rubber |
Fabric | Cotton, Polyester |
Top Surface | Bare |
Bottom Surface | Bare |
Color | White |
Number of Plies | 2P to 10P |
Thickness | 2.0mm to 10mm |
Anti-Static | No |
Max. Width | 2200mm |
Min. Pulley Diameter | 70mm |
Operating Temperature | -40° to 120° C |
Fabric | Cotton, Polyester |
Meets FDA Requirements | No |
Adhesion between plies | 3.0N/mm |
Joint | Steel buckle joint, Seamless connection |
