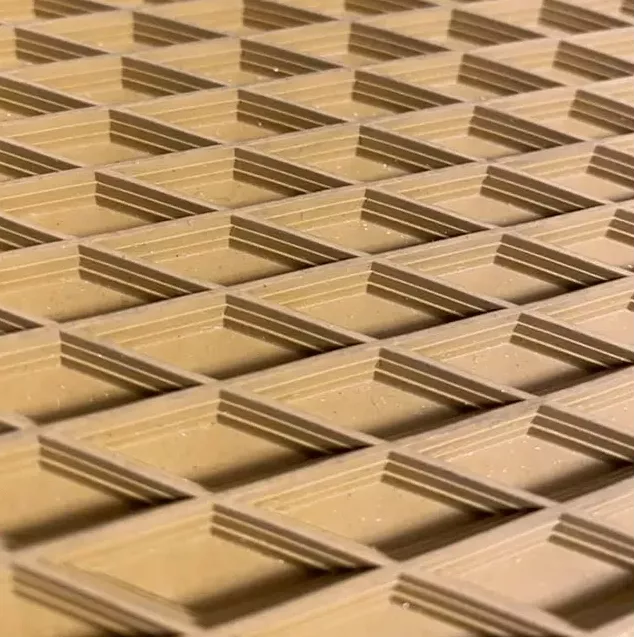

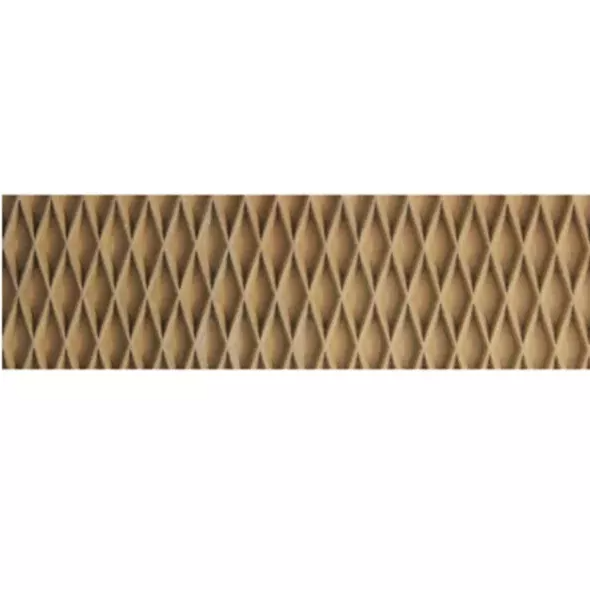

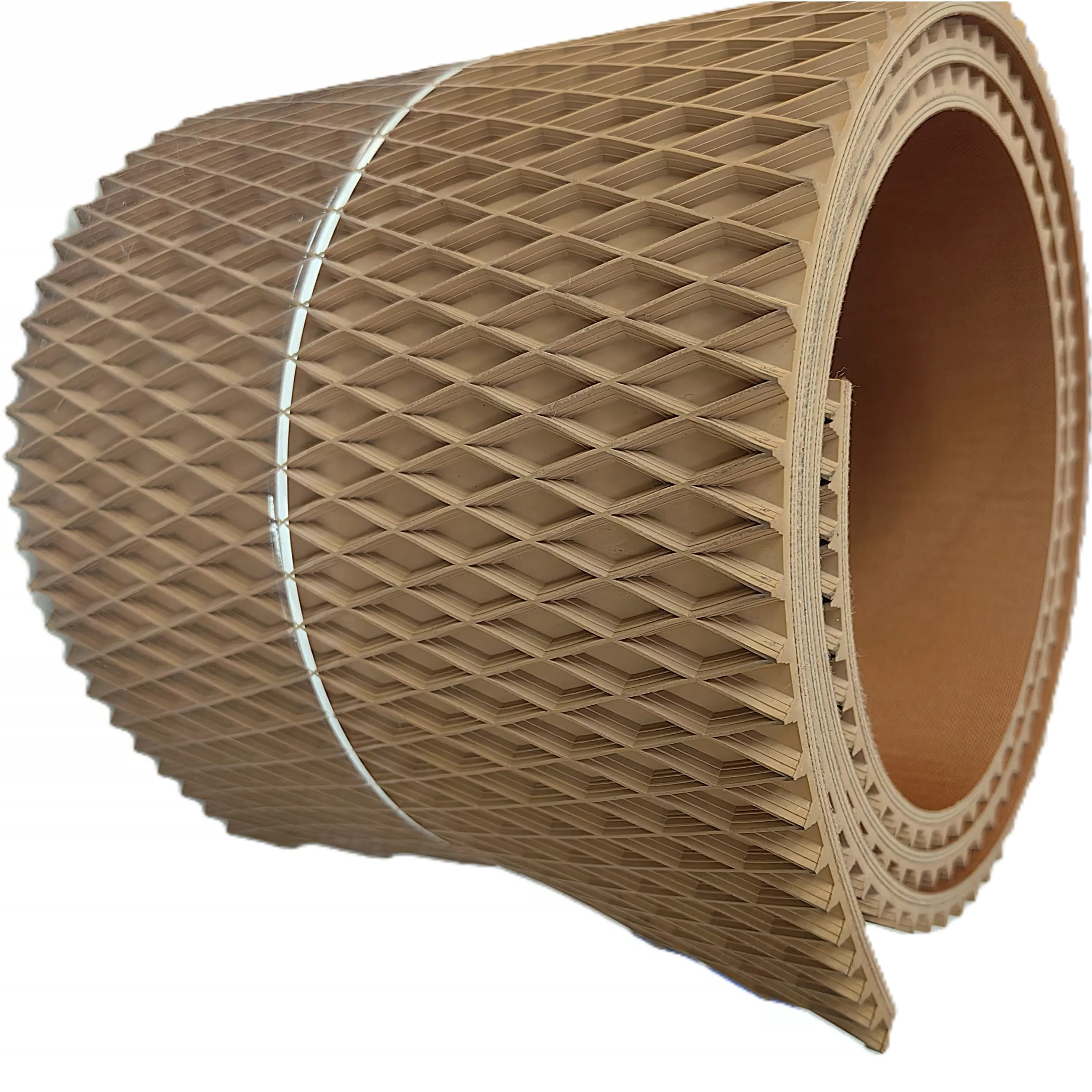

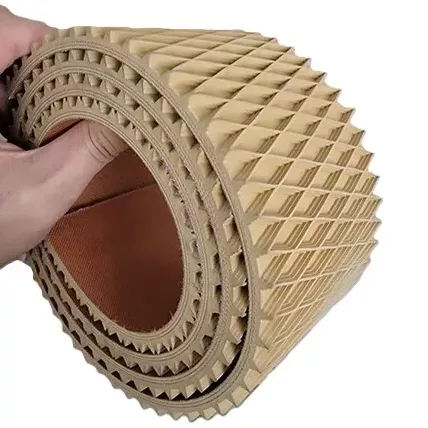

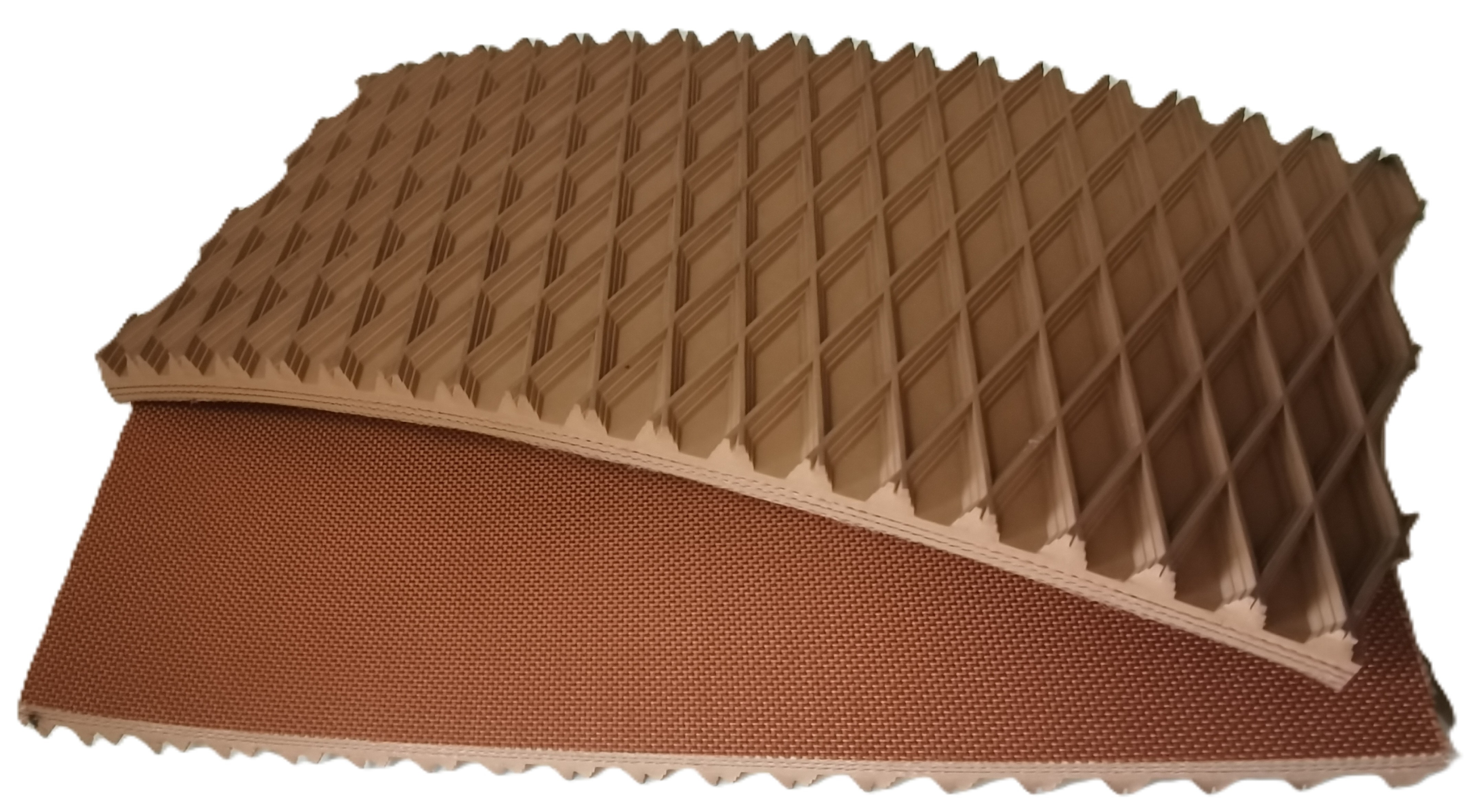

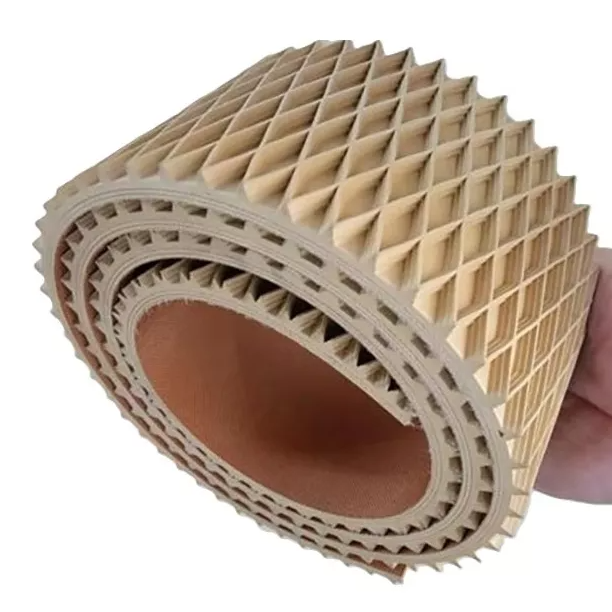

This conveyor belt is built of high-strength versatile synthetic carcass plies and featuring a diamond-top layer shaped in a diagonal rib structure.
This 2-ply conveyor belt offers an exceptionally high friction coefficient for transporting packaged and bagged products to the steepest slopes.
The top Tan Wedge grip is Non-marking.
This conveyor belt is built of high-strength versatile synthetic carcass plies and featuring a diamond-top layer shaped in a diagonal rib structure.
This 2-ply conveyor belt offers an exceptionally high friction coefficient for transporting packaged and bagged products to the steepest slopes.
The top Tan Wedge grip is Non-marking.
Application:
Bulk product conveying, General conveying, Horticultural, Incline, Industrial Material handling, Packaging, Recycling, Turn applications etc.
★ Excellent abrasion resistance
★ Excellent grip in wet and dry characteristics
★ Temperature range -40°C to 121 °C
Physical Properties | |
Type | Diamond Top |
Colour | Black, Tan or customized |
Number of Fabric Plies | 2Ply, 3Ply or customized |
Fabric Top Material | Nylon fabric |
Fabric Bottom Material | Polyester fabric |
Profile Top side | Wear-resistant rubber surface with diamond top |
Profile Bottom side | Impregnated fabric |
Wear-resistant, smooth rubber surface | |
Total Thickness | 9.0mm or customized |
Technical Data | |
Tensile strength | > 450 N/mm |
Elongation at break | > 10 % |
Hardness | 65~70 Shore A |
Width | 100 – 1500mm |
Temperature Range | -18 to 120 C |
Joining Methods | #2 Clipper, #15 Alligator, #125 Staple |
