Flextrans specializes in producing lightweight conveyor belts.
With 25 years of practical experience in manufacturing various Conveyor Belt to suite different applications.
Our lightweight conveyor belts with a variety of fabric core and covers to ensure optimum performance.
Fabric Material include EP, NN, CC, SW,Kevlar.
Cover materials include natural rubber, Carboxylated Nitrile, Nitrile, SBR, Butyl, Teflon, EPDM and Neoprene.
Color: Black, Blue, Green, Orange, Brown, Tan etc.
This Carboxylated nitrile belt will outperform urethane belts in wear, cut and gouge resistance.
It also has excellent oil resistance.

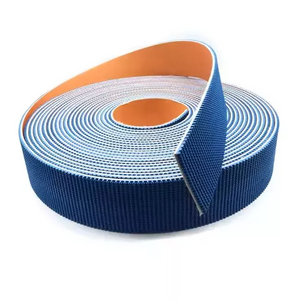

This is an ideal inclined belt for up to 25 degrees and is popular in the paper and cardboard box industry.
★ Excellent abrasion resistance
★ Excellent grip in wet and dry characteristics
★ Temperature range -40°C to 121 °C
Physical Properties | |

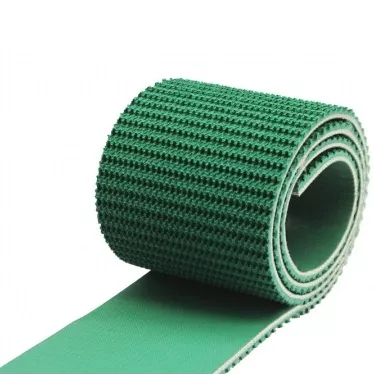

Type | Nitrile Rough Top Inclined Belt |
Color | Black, Blue,Green, Orange, Tan etc. |
Number of Fabric Plies | 3 |
Fabric Top Material | Carboxylated nitrile |
Fabric Bottom Material | Polyester fabric |

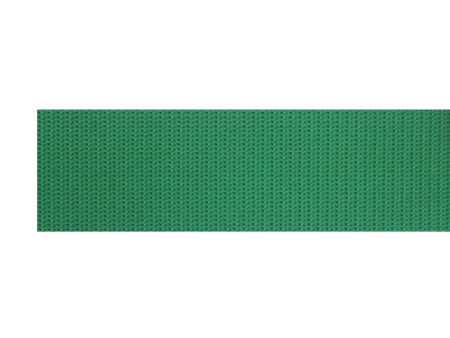

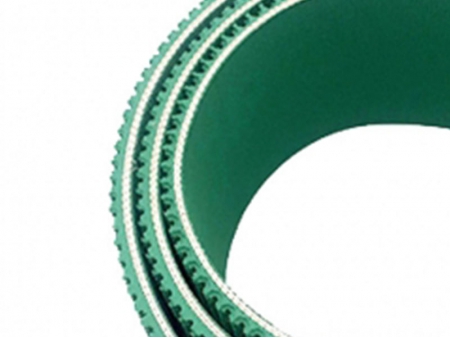

Profile Top side | Grip structure |
Profile Bottom side | Impregnated fabric |
Wear-resistant, smooth rubber surface | |
Total Thickness | 7.0mm or customized |
Technical Data | |
Temperature Range | -18 to 120 C |
Joining Methods: | #2 Clipper, #15 Alligator, #125 Staple |
Anti-static | No |
Oil and Grease Resistant | Yes |
Pulley | |
Min Pulley Diameter: | 80/140 |
Carrying Rollers | Yes |
Slider Bed | Yes |
Trough Installation | No |
Standards | |
FDA food contact | No |
