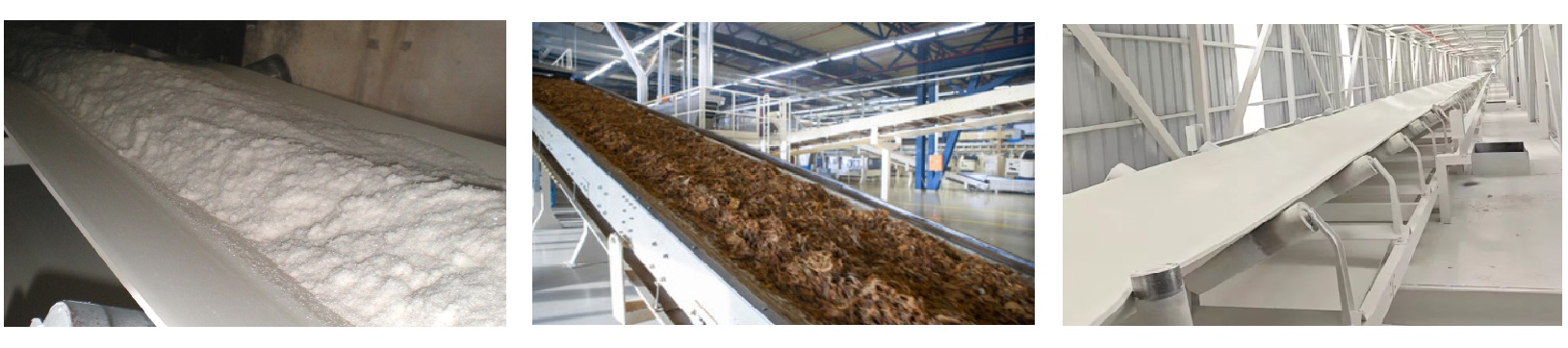

White conveyor belts are for the wood handling and food industry. White belts are ideal for transporting all kinds of materials that can't have color transfer or contamination, including food grade and industry grade.
Food Grade Belts available in finish forms including -Manufactured using natural rubber that finds suitability for non oil/acidic/reactive materials. Special synthetic rubber based compound based belting that are suited for any oily/chemically active food products like fruits & vegetables, meat, free flowing sugar as well as other items having presence of high moisture content.
White conveyor belts are for the wood handling and food industry. White belts are ideal for transporting all kinds of materials that can't have color transfer or contamination, including food grade and industry grade.
Food Grade Belts available in finish forms including -Manufactured using natural rubber that finds suitability for non oil/acidic/reactive materials. Special synthetic rubber based compound based belting that are suited for any oily/chemically active food products like fruits & vegetables, meat, free flowing sugar as well as other items having presence of high moisture content.
★ Food grade, FDA complied.
★ White rubber cover, NR/NBR based compound.
★ Oil resistant, anti-static character.
Physical Properties | |
Type | White Rubber Conveyor Belt |
Color | White FDA Grade |
Fabric Top Material | NN, EP or customized |
Fabric Bottom Material | NN, EP or customized |
Number of Fabric Plies | 2P, 3P, or customized |
Top Cover Material | NR,SBR,NBR/or customized |
Bottom Material | NR,SBR,NBR/Bare or customized |
Profile Top side | Flat or Chevron V |
Profile Bottom side | Bare/Impregnated fabric |
Total Thickness | 5.5mm, 7.0mm or customized |
Technical Data | |
Tensile strength | 450 N/mm |
Elongation at break | > 10 % |
Hardness | 65~70 Shore A |
Width | 100 – 2200mm |
Temperature Range | -40 to 120 °C |
Joining Methods | Step joint or mechanical splice |
Antistatic | Yes |
Oil and Grease Resistant | Yes |
Pulley | |
Min Pulley Diameter | 80/140 |
Carrying Rollers | Yes |
Slider Bed | Yes |
Trough Installation | No |
Standards | |
FDA food contact | Yes |
