Flextrans specializes in producing lightweight conveyor belts.
With 25 years of practical experience in manufacturing various Conveyor Belt to suite different applications.
Our lightweight conveyor belts with a variety of fabric core and covers to ensure optimum performance.
Fabric Material include EP, NN, CC, SW,Kevlar.
Cover materials include natural rubber, Carboxylated Nitrile, Nitrile, SBR, Butyl, Teflon, EPDM and Neoprene.
Color: Black, Blue, Green, Orange, Brown, Tan etc.

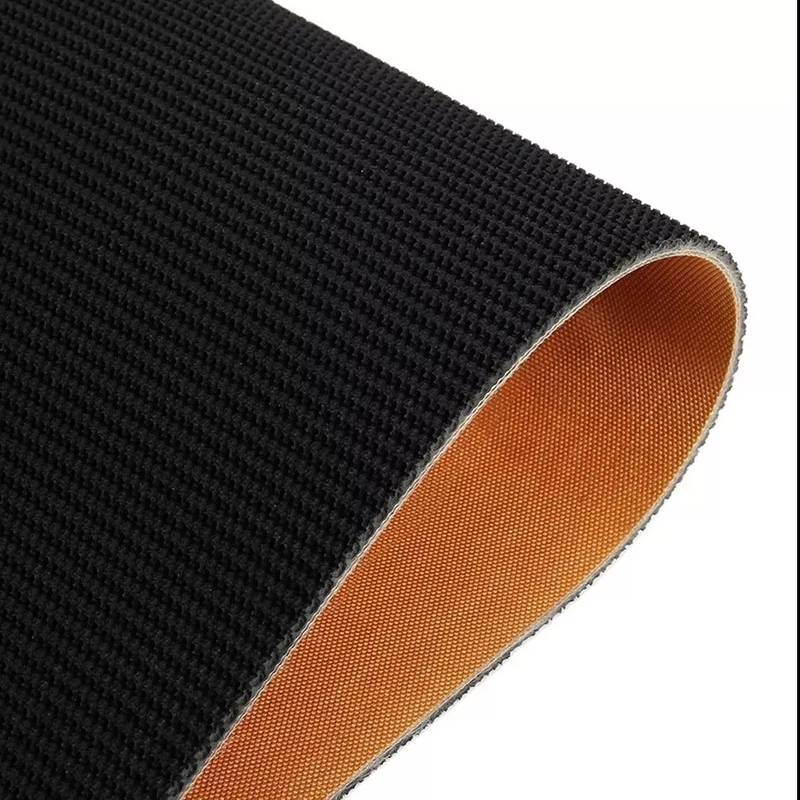

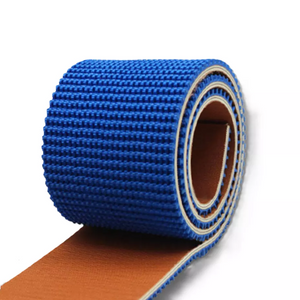

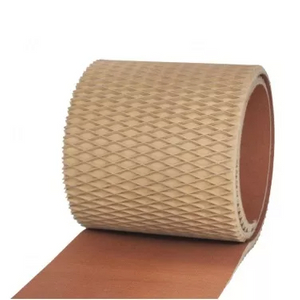

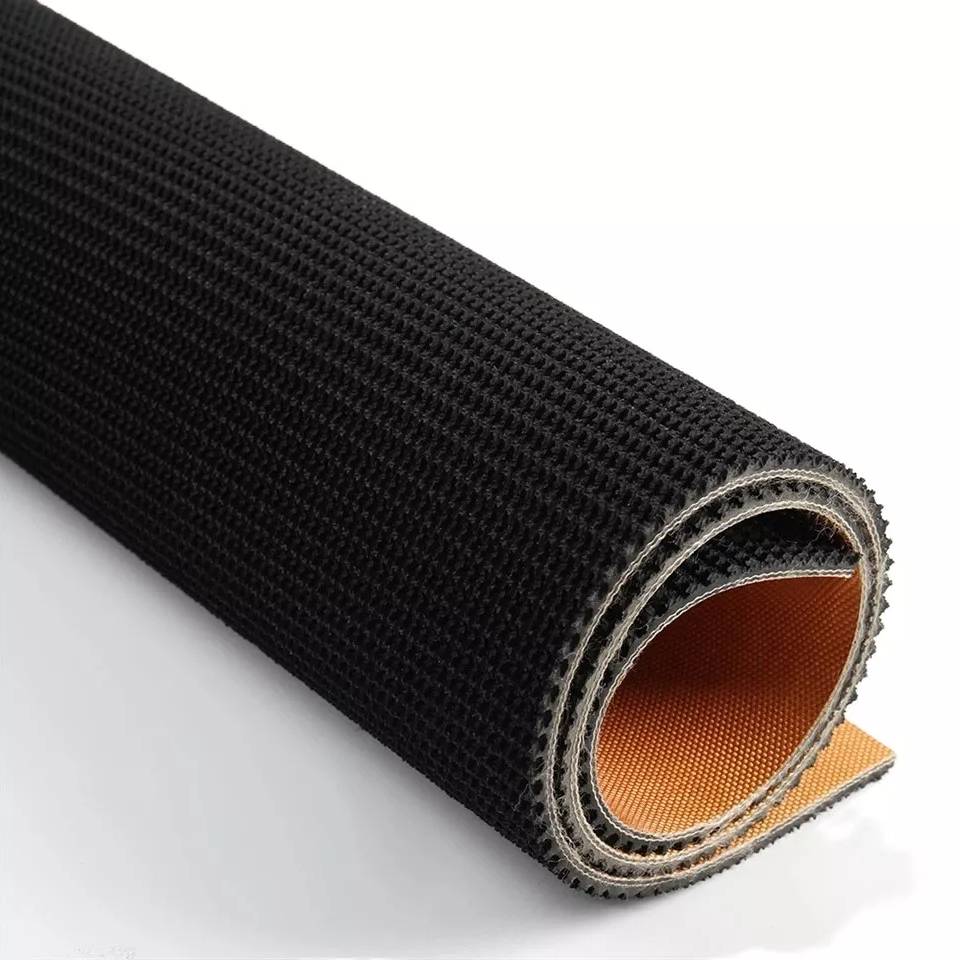

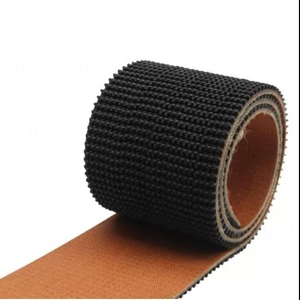

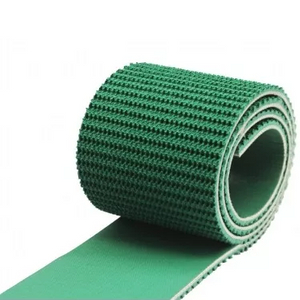

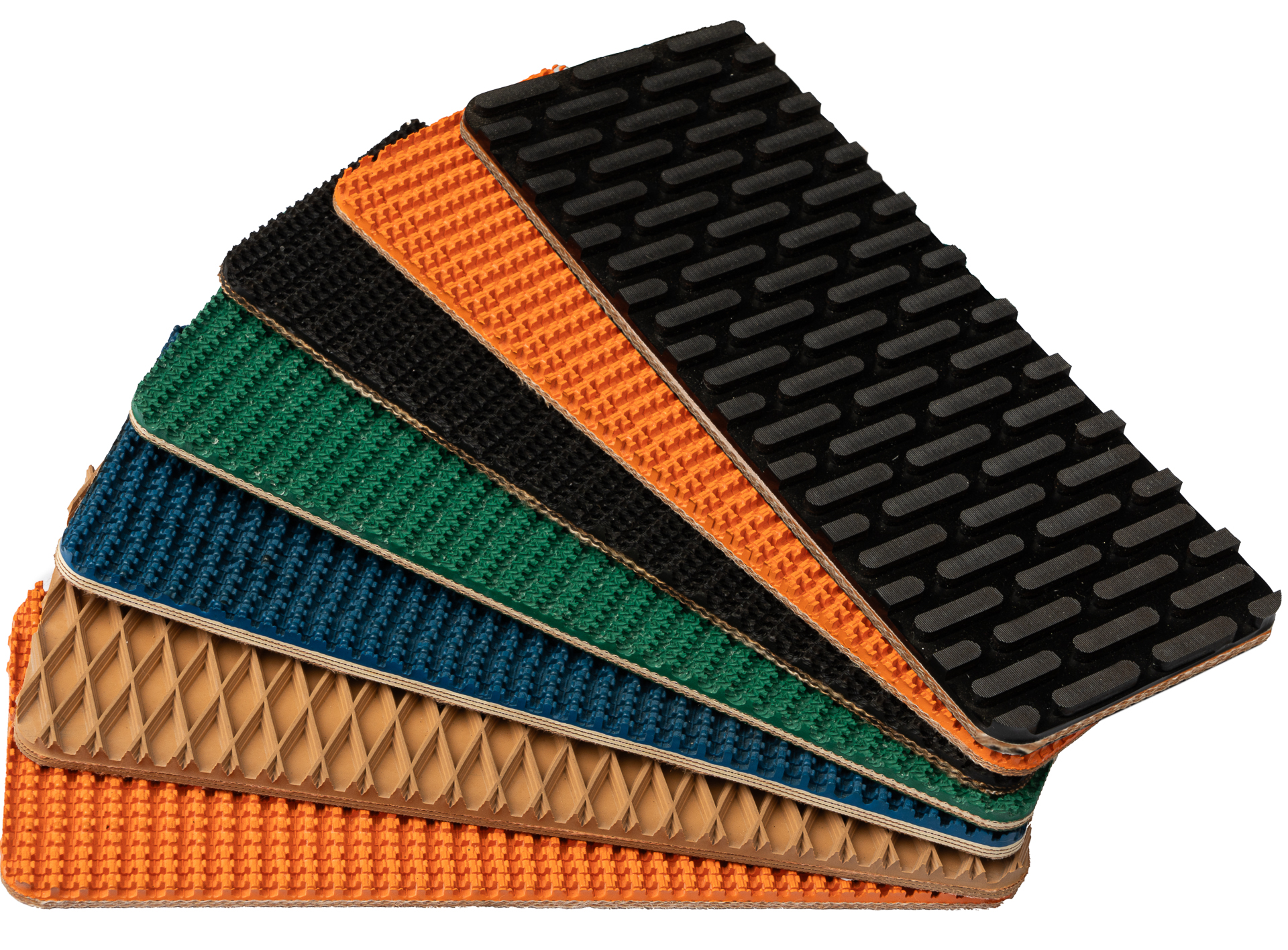

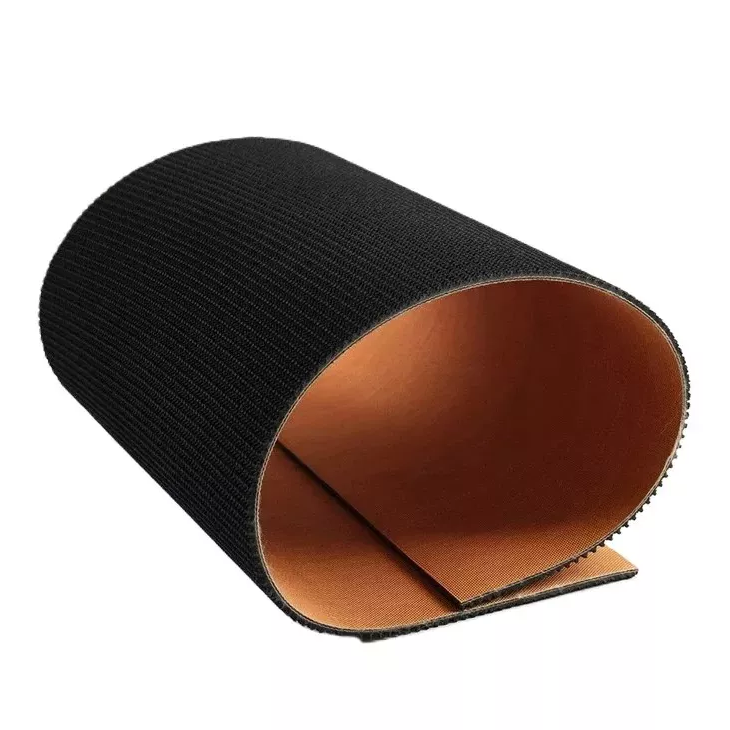

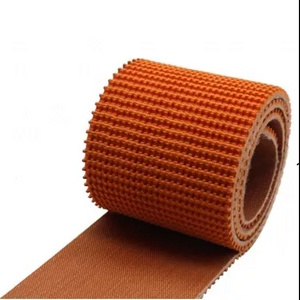

Flextrans supplies several types of rough top conveyor belts.
These conveyor belts are produced by two or three ply carcass of NN/EP fabric, Top cover is made of wear-resistant rubber with a non-slip surface, Bottom side can be bare or wear-resistant rubber.

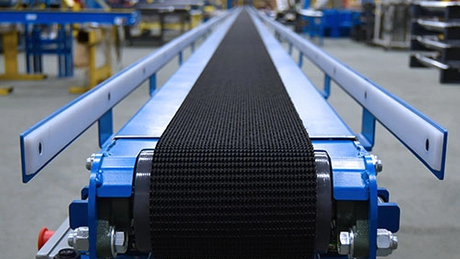

It can be used for general conveying of loose or packaged products for applications such as Incline Conveyor,Package Handling, Lumber, sacks, boxes and parcels on inclined surface at angles of 35°.
It has a cushioning effect, mollifies and absorbs vibrations and impacts given on transported materials and simultaneously prevents slipping.
★ Excellent abrasion resistance
★ Excellent grip in wet and dry characteristics
★ Temperature range -40°C to 121 °C
Physical Properties | |
Type | Rough Top Conveyor Belt |
Color | Black, Blue, Green, Orange, Brown, Tan etc. |
Fabric Top Material | Nylon fabric or customized |
Fabric Bottom Material | Polyester fabric or customized |
Number of Fabric Plies | 2P, 3P, or customized |
Top Cover Material | NR,SBR,NBR/Carboxylated nitrile or customized |
Bottom Material | NR,SBR,NBR/Bare or customized |
Profile Top side | Grip structure |
Profile Bottom side | Bare/Impregnated fabric |
Total Thickness | 5.5mm, 7.0mm or customized |
Technical Data | |
Tensile strength | 450 N/mm |
Elongation at break | > 10 % |
Hardness | 65~70 Shore A |
Width | 100 – 2200mm |
Temperature Range | -40 to 120 °C |

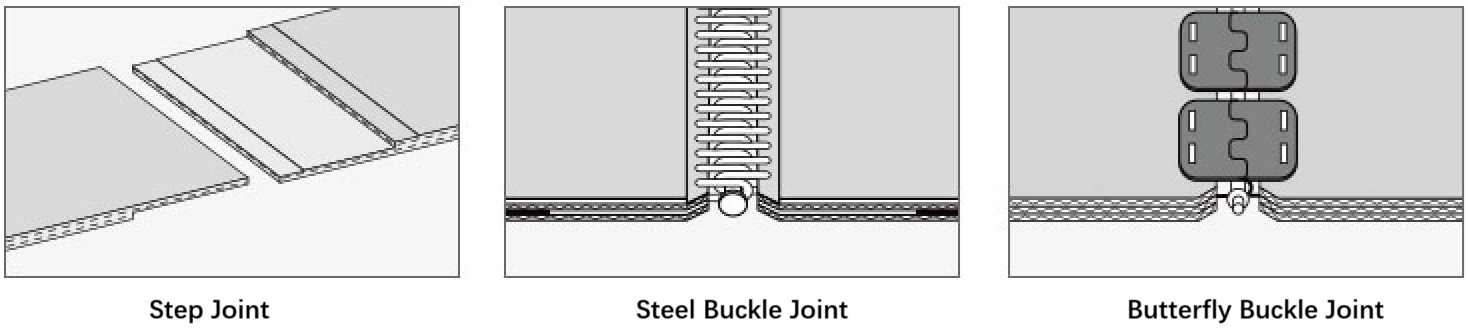

Joining Methods | #2 Clipper, #15 Alligator, #125 Staple |
Antistatic | No |
Oil and Grease Resistant | Yes |
Pulley | |
Min Pulley Diameter | 80/140 |
Carrying Rollers | Yes |
Slider Bed | Yes |
Trough Installation | No |
Standards | |
FDA food contact | No |
