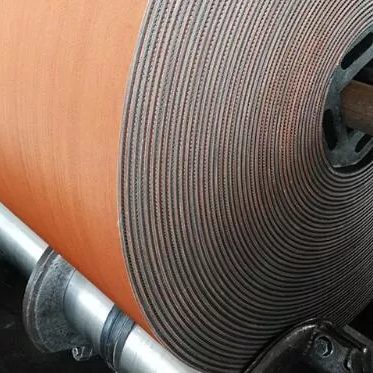

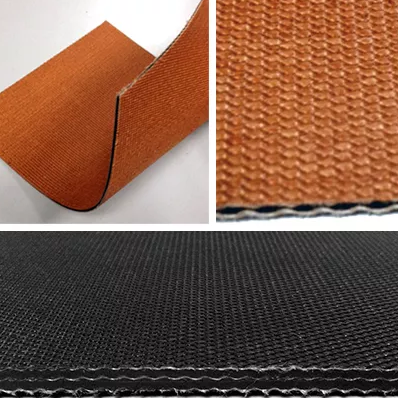

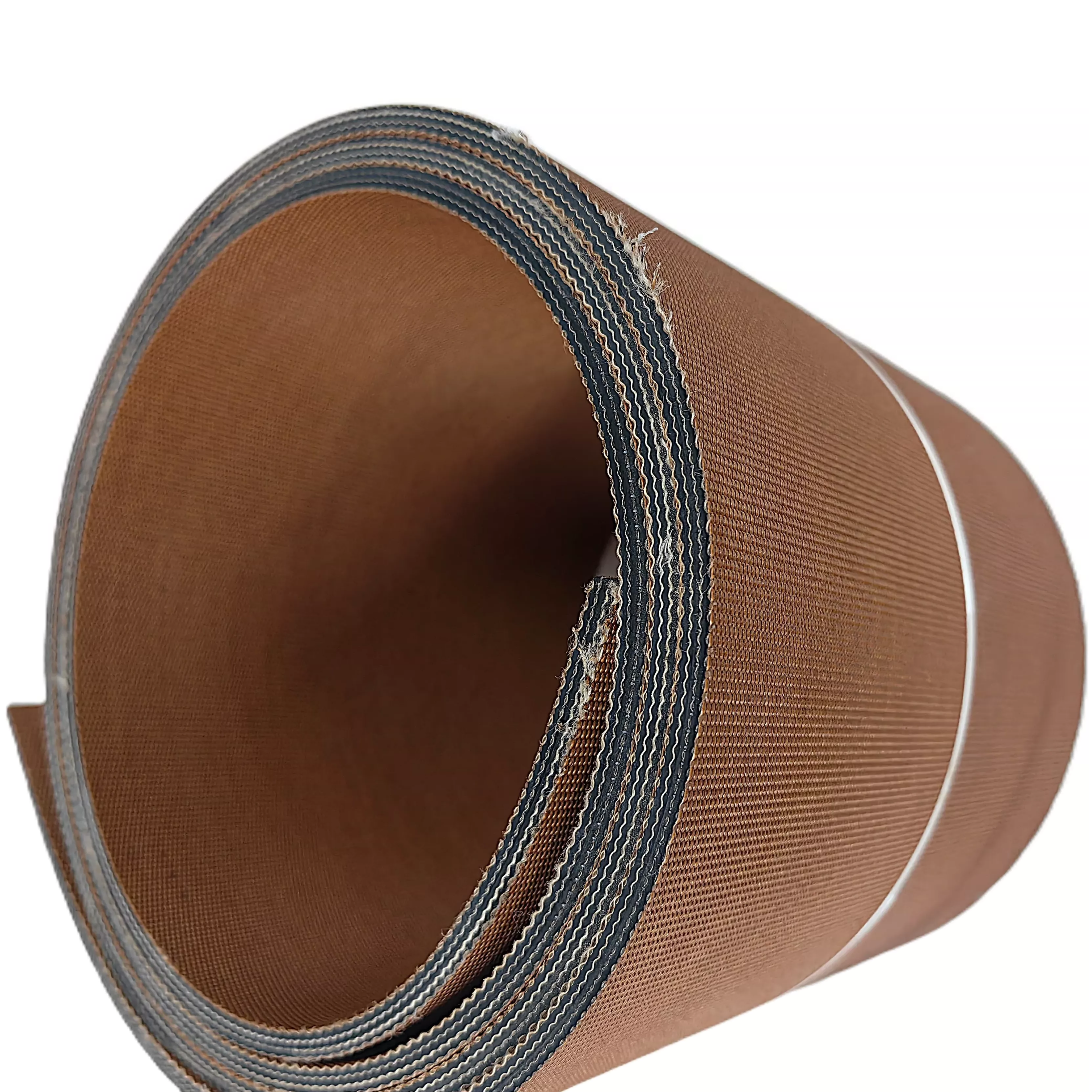

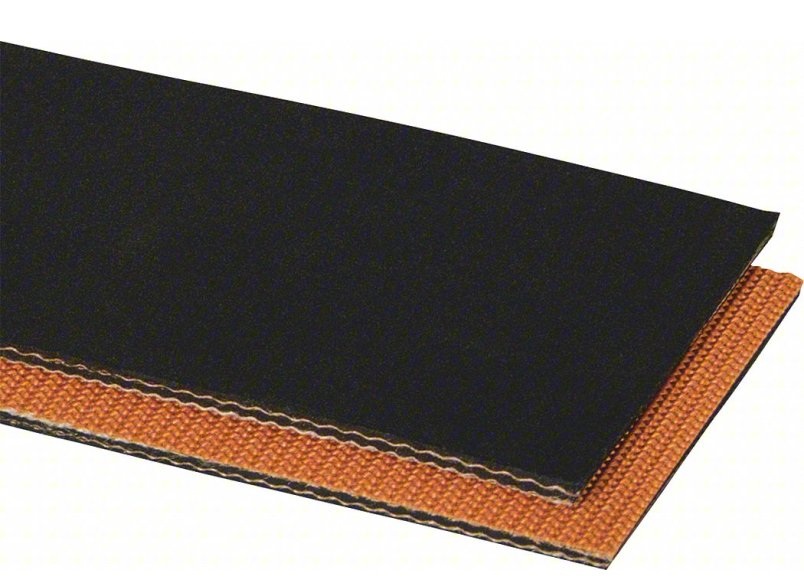

The Bare Back Belt provides thousands of flexible gripping fingers to hold packaged products or units being carried up or down steep grades to a maximum of 35 degrees. Rough Top Conveyor Belt is available with black and tan rubber covers.
Flextrans specializes in producing lightweight conveyor belts. With 25 years of practical experience in manufacturing various Conveyor Belt to suite different applications.
Our lightweight conveyor belts with a variety of fabric core and covers to ensure optimum performance.
Fabric Materials include EP, NN, CC, SW, Kevlar.
Cover materials include Natural Rubber, Carboxylated Nitrile, Nitrile, SBR, Butyl, Teflon, EPDM and Neoprene.
★ Excellent abrasion resistance
★ Excellent grip in wet and dry characteristics
★ Temperature range -40°C to 121 °C
Physical Properties | |
Type | Lightweight Rubber Belts |
Color | Black, Blue, Green, Orange, Brown, Tan etc. |
Fabric Top Material | Nylon fabric or customized |
Fabric Bottom Material | Polyester fabric or customized |
Number of Fabric Plies | 2P, 3P, or customized |
Top Cover Material | NR,SBR,NBR/Carboxylated nitrile or customized |
Bottom Material | NR,SBR,NBR/Bare or customized |
Profile Top side | Grip structure |
Profile Bottom side | Bare/Impregnated fabric |
Total Thickness | 5.5mm, 7.0mm or customized |
Technical Data | |
Tensile strength | 450 N/mm |
Elongation at break | > 10 % |
Hardness | 65~70 Shore A |
Width | 100 – 2200mm |
Temperature Range | -40 to 120 °C |
Joining Methods | #2 Clipper, #15 Alligator, #125 Staple |
Antistatic | No |
Oil and Grease Resistant | Yes |
Pulley | |
Min Pulley Diameter | 80/140 |
Carrying Rollers | Yes |
Slider Bed | Yes |
Trough Installation | No |
Standards | |
FDA food contact | No |
