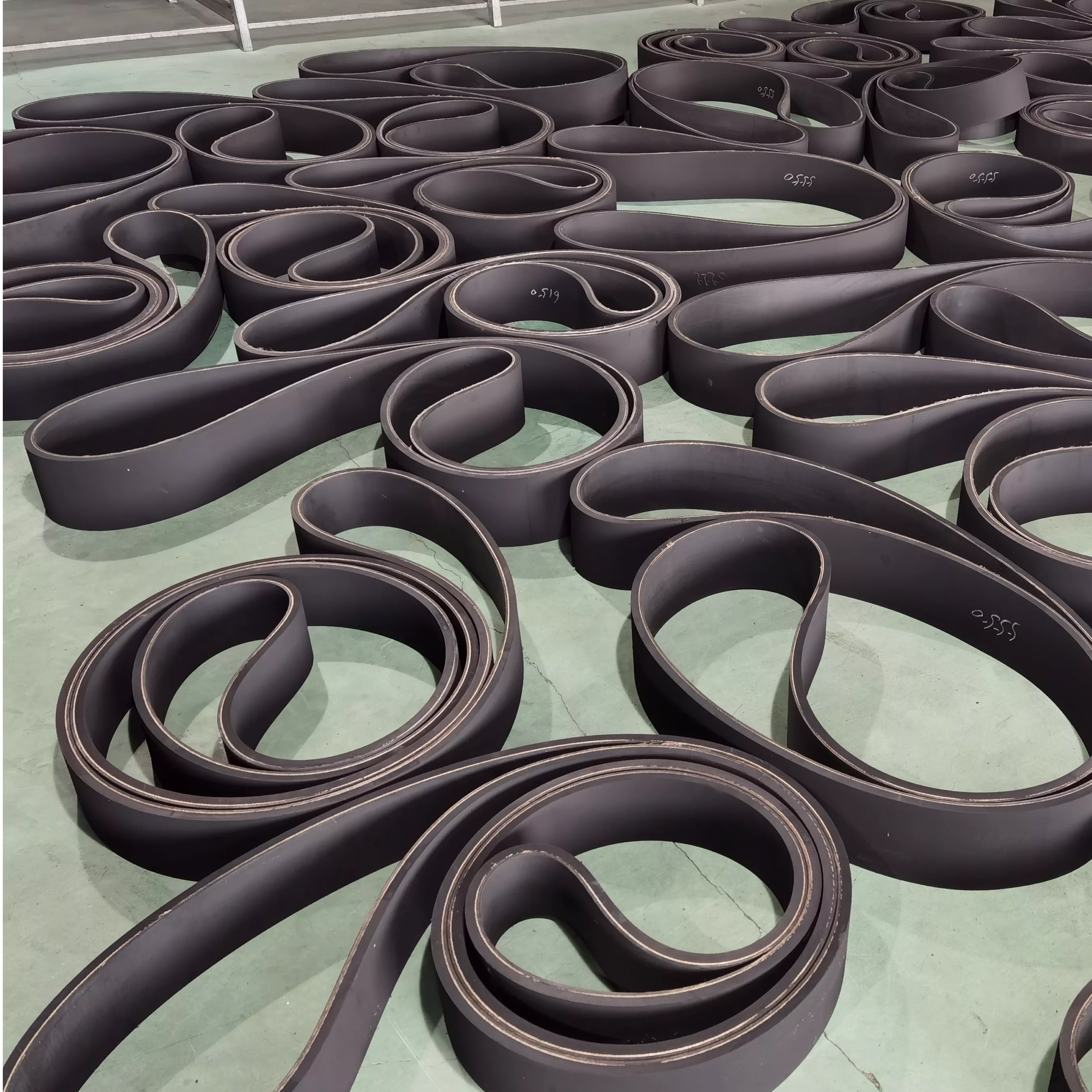

Rubber cable pulling belts are manufactured for medium and heavy duty cable pulling applications.
Belts are used to draw cables through cable production line. Pulling machine - also called caterpillar - consists of two belts which clamp and draw cable under vertical pressure.
Belts are designed and manufactured according to our customers needs. Belts can be used also for plastic pipes and profiles production.
Rubber cable pulling belts are manufactured for medium and heavy duty cable pulling applications. Belts are used to draw cables through cable production line. Pulling machine - also called caterpillar - consists of two belts which clamp and draw cable under vertical pressure.
Belts are designed and manufactured according to our customers needs. Belts can be used also for plastic pipes and profiles production.
Mechanical features:
★ Truly endless construction - no joint or seam
★ Wear and tear resistant rubber compounds, different hardnesses
★ Top surface smooth or with grooves
★ Bottom surface smooth or Poly-V ribs or timing belt
★ Wide range of tensile members
★ Metal reinforcement for heavy duty applications
★ Special rubber compounds for high temperatures
Type:

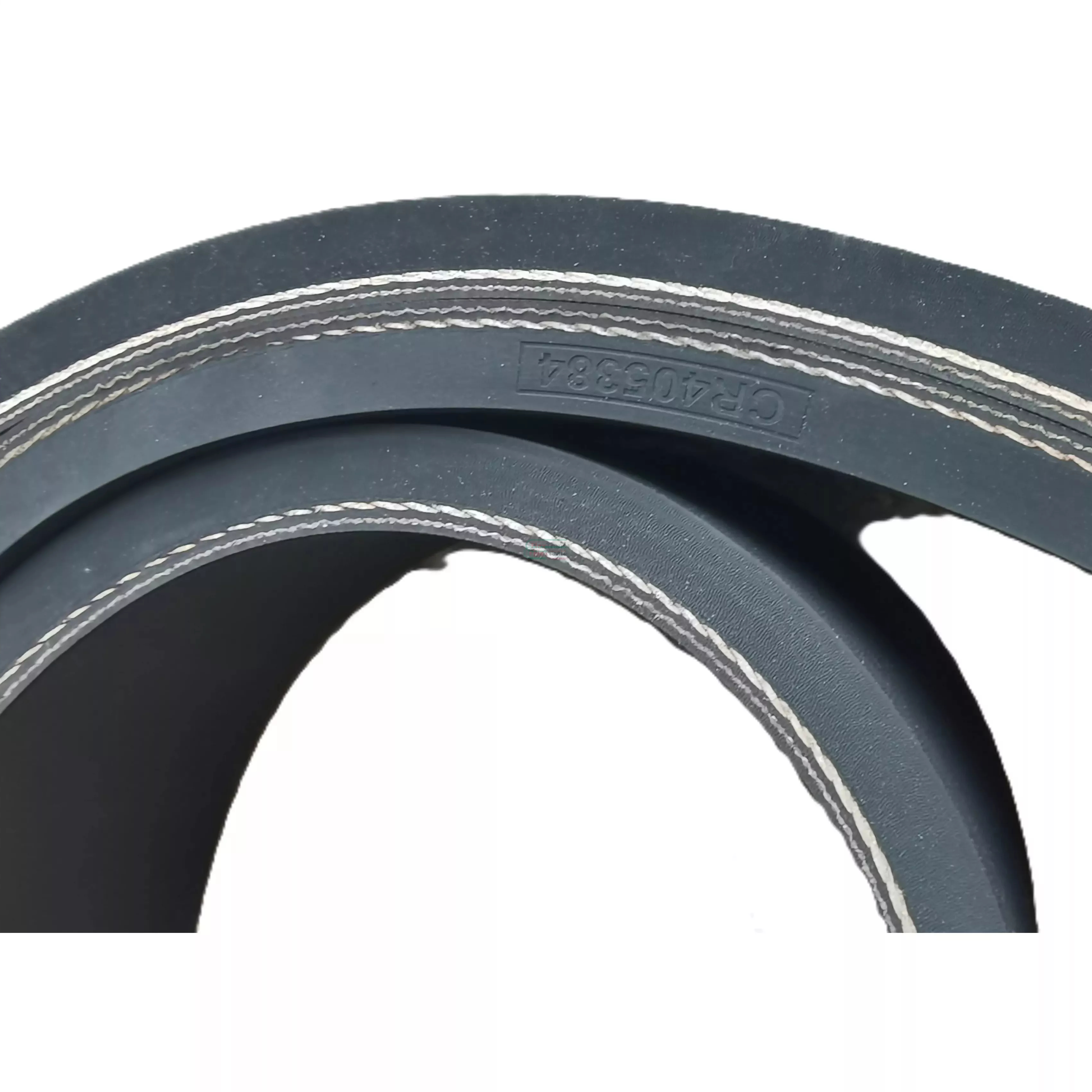

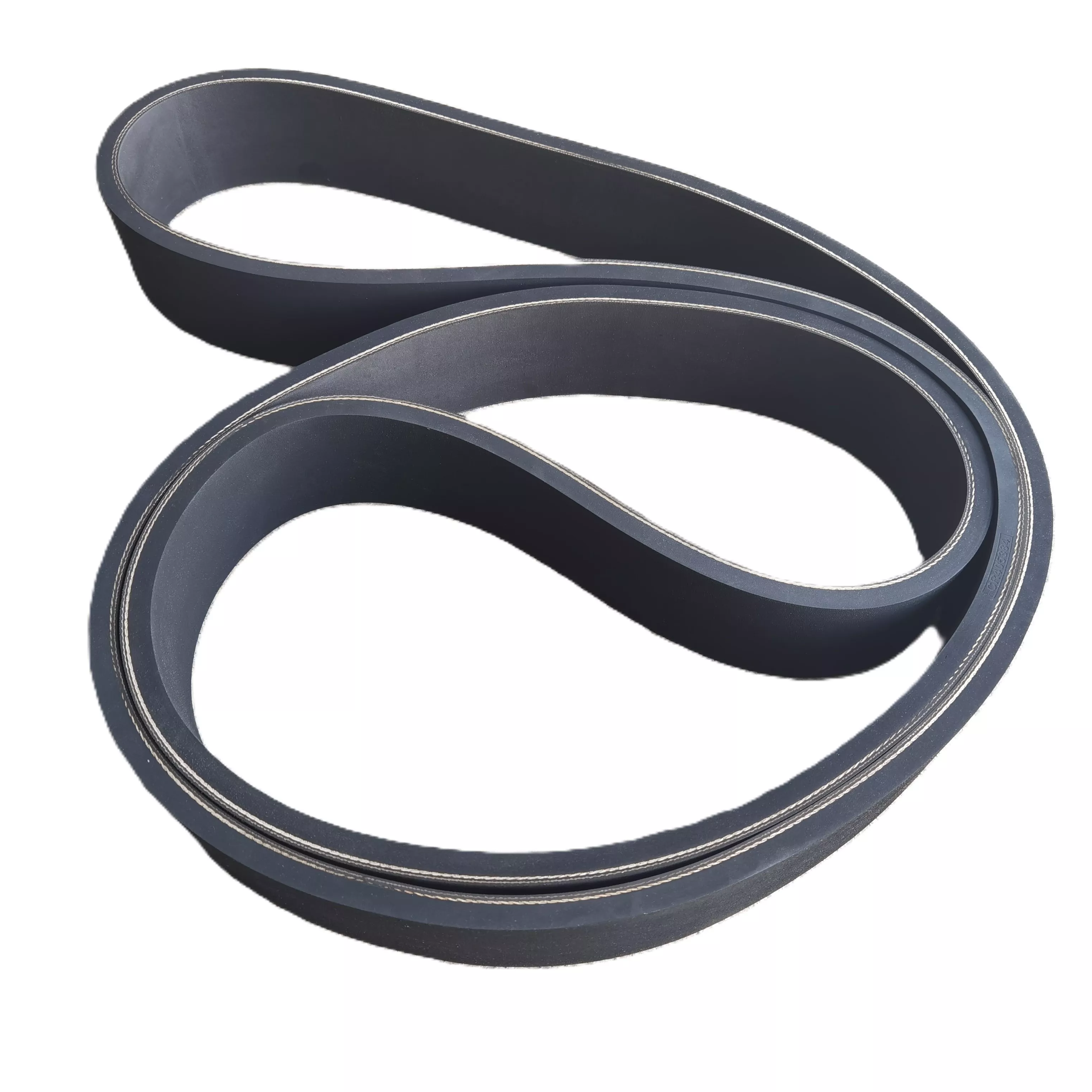

1. Flat belt

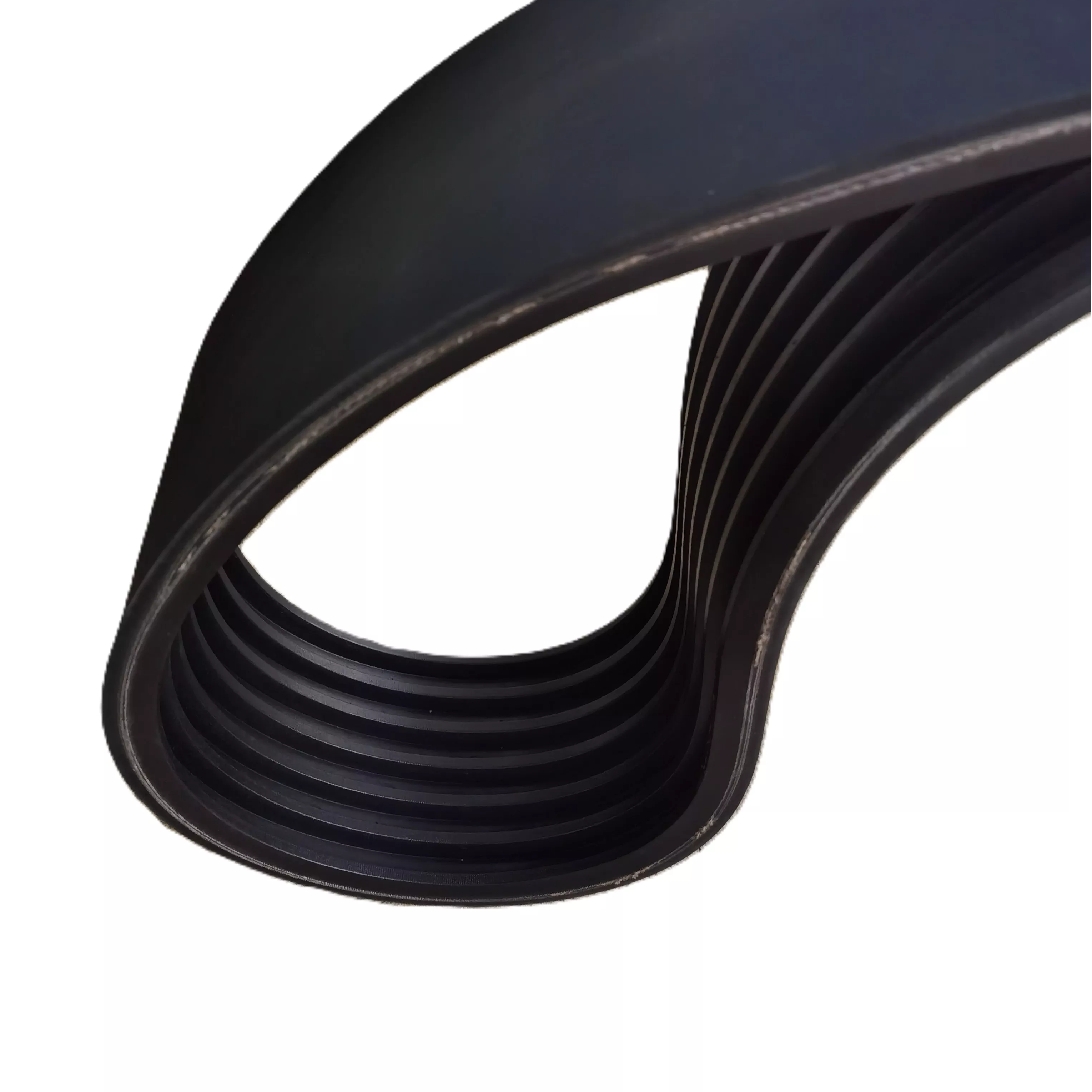

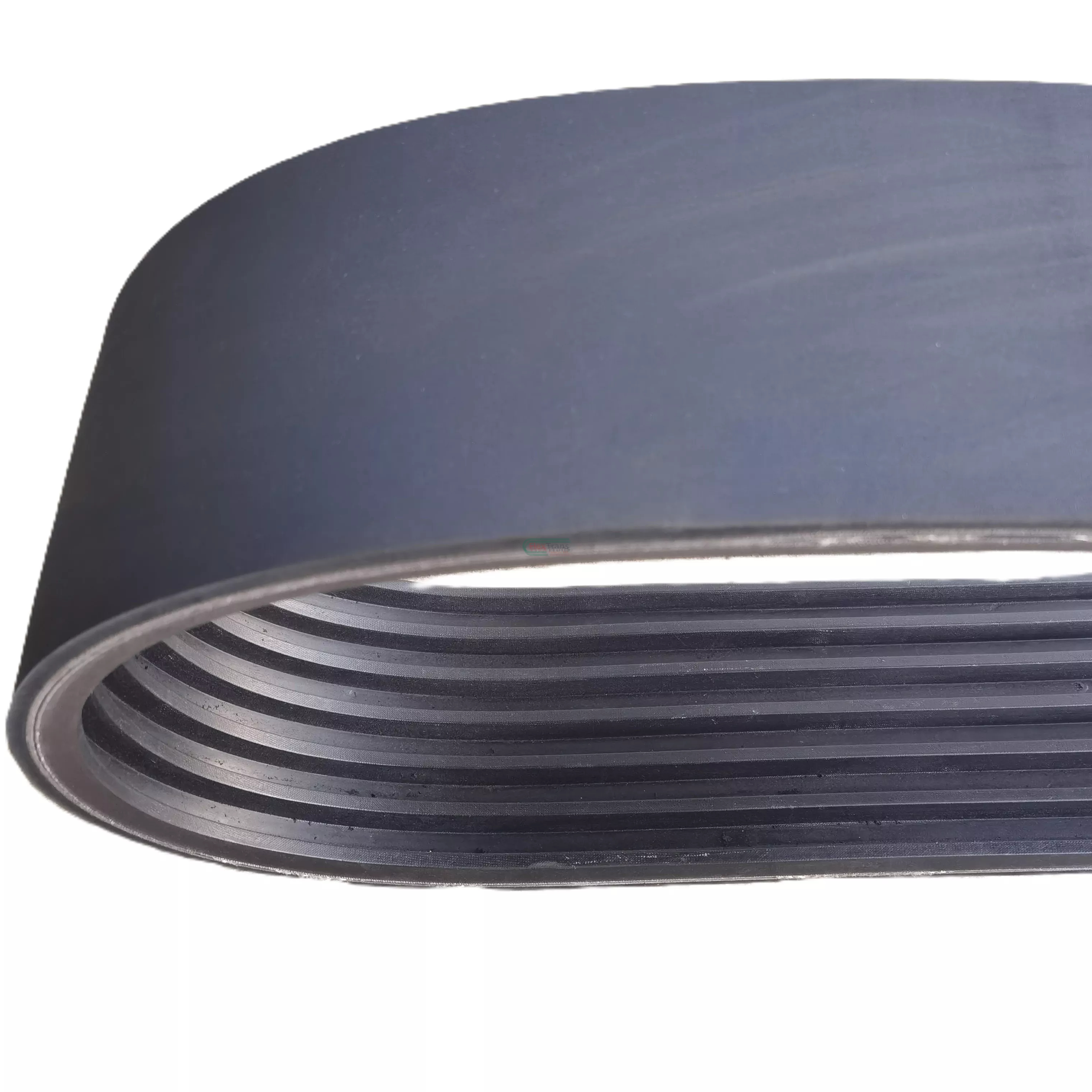

2. Ribbed belt

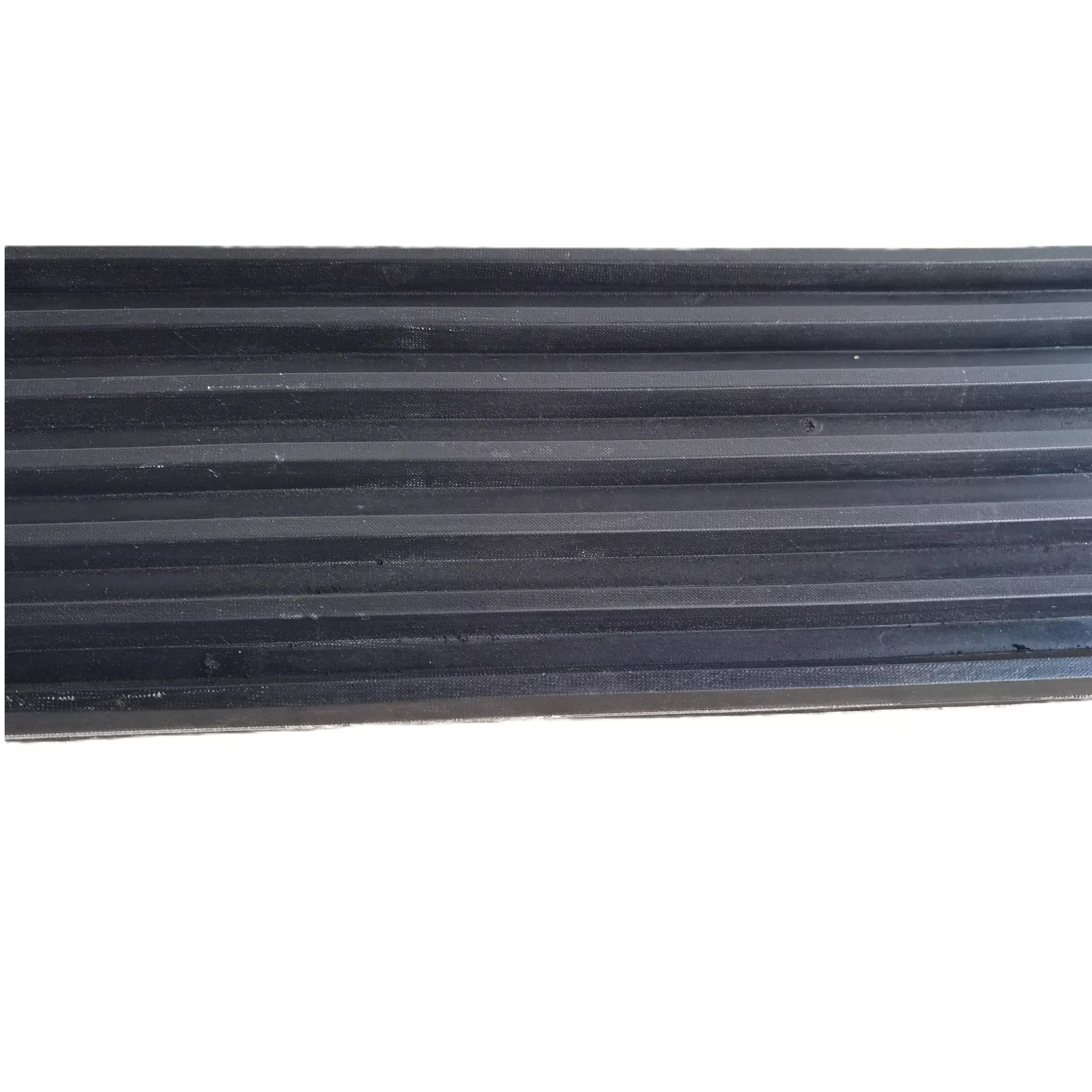

3. With groove on the surface
Feature:
Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance, Seamless/ Wear-Resisting
Physical Properties | |
Specification (Inner Length, Width, Thickness) | Customized |
Colors | Black,White,Red,Green,Grey or Customized |
Breaking strength | 500 ~ 2000 daN/cm |
Max. length | 25,000mm |
Max. belt thickness | 40mm |
Traction Layer | Rubber: Imported NR |
Bottom layer | Rubber: CR; Reinforcement: Polyester Cord + Fabric |
Mechanical Properties | High breaking load |
High Wear Resistance | |
Low Elongation at Working Load | |
Aging Proof | |
Hardness | 60°± 5°(cable traction) |
50°± 5°(optical cable; plastic and pipe Traction etc.) | |
80°± 5°(custom) | |
Max. temperature | +100℃ |
Processing | Rubber Mixing, Winding, Rubber Adding,Cutting, Grinding, QC, Packaging and Delivering |
